NCS21674DMG200R2G - onsemi

Description: Wide common mode input range: -0.1 V to 40 V; Supply Voltage Range: 2.7. to 5.5V; Low Offset Voltage: 100µV; Low Offset Drift: 1µV/C; Low Gain Error: ±1%; Dual Current Sensing Channel

Download NCS21674DMG200R2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

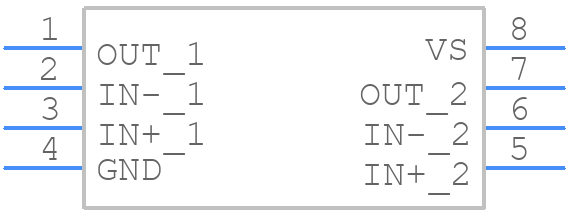

NCS21674DMG200R2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCS21674DMG200R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - Micro8 CASE 846A−02 ISSUE K
click to zoom
3D Models
NCS21674DMG200R2G - onsemi - 3D model - Small Outline Packages - Micro8 CASE 846A−02 ISSUE K
click to zoom

NCS21674DMG200R2G Details

  • Manufacturer Part Number:

    NCS21674DMG200R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    Micro8

  • Manufacturer Package Code:

    846A-02

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    onsemi

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Common-mode Reject Ratio-Min:

    84 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    500 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    2 V/us

  • Supply Current-Max:

    0.6 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Wideband:

    NO

  • Width:

    3 mm

NCS21674DMG200R2G Frequently Asked Questions (FAQs)

  • For optimal performance, it is recommended to follow the PCB layout guidelines provided in the application note AND9407/D, which includes thermal management considerations such as thermal vias, copper pours, and heat sinks.
  • Refer to the device's datasheet and application notes for specific biasing and configuration guidelines. Additionally, onsemi provides evaluation boards and design files that can be used as a reference for your design.
  • onsemi provides reliability data for the NCS21674DMG200R2G in the device's datasheet and reliability report. The MTBF and FIT rate can be calculated based on the provided data and industry-standard formulas.
  • Yes, the NCS21674DMG200R2G is a sensitive device and requires proper ESD protection and handling precautions. Follow the guidelines provided in the datasheet and industry-standard ESD handling procedures to prevent damage.
  • The NCS21674DMG200R2G is rated for operation up to 150°C. However, the device's performance and reliability may be affected at higher temperatures. Consult the datasheet and application notes for specific guidance on high-temperature operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCS21674DMG200R2G Overview

Use the download button to access the NCS21674DMG200R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCS21, or try a keyword search, such as Operational Amplifiers
