NCS21802MUTBG - onsemi

Description: Low Input Offset Voltage: 10µV; Low Offset Voltage Drift: 5nV/C; Extended Supply Voltage Range:1.8V to 5.5V. As low as 1.6V ( 0 to 85C),; Quiescent Current: 95uA max; Integrated EMI Filters; Gain Bandwidth Product: 1.5 MHz

Download NCS21802MUTBG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

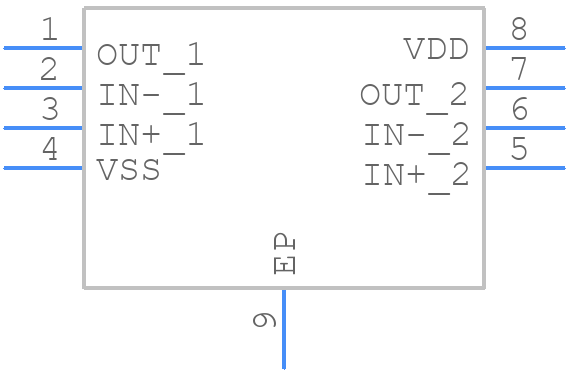

Symbol
NCS21802MUTBG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCS21802MUTBG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - NCS21802MUTBGss
click to zoom
3D Models
NCS21802MUTBG - onsemi - 3D model - Small Outline No-lead - NCS21802MUTBGss
click to zoom

NCS21802MUTBG Details

  • Manufacturer Part Number:

    NCS21802MUTBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UDFN-8

  • Manufacturer Package Code:

    517AW

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2020-04-21

  • Manufacturer:

    onsemi

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0006 µA

  • Bandwidth (3dB)-Nom:

    1.5 MHz

  • Bias Current-Max (IIB) @25C:

    0.00016 µA

  • Common-mode Reject Ratio-Min:

    113 dB

  • Common-mode Reject Ratio-Nom:

    110 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.00016 µA

  • Input Offset Voltage-Max:

    10 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.55 mm

  • Slew Rate-Nom:

    0.7 V/us

  • Supply Current-Max:

    0.25 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Min:

    1000000

  • Wideband:

    NO

  • Width:

    2 mm

NCS21802MUTBG Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCS21802MUTBG involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure proper biasing, make sure to follow the recommended voltage and current settings outlined in the datasheet. Additionally, use a stable voltage source and decouple the power supply lines with capacitors to minimize noise and ripple. It's also important to ensure that the input and output impedance of the device are matched to the system's impedance to prevent signal reflections and distortion.
  • The NCS21802MUTBG is rated for operation from -40°C to 125°C, but it's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance and reliability. Operating the device outside of this range may affect its performance, reliability, and lifespan.
  • To troubleshoot issues with the NCS21802MUTBG, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Next, verify that the device is properly biased and that the input and output signals are within the recommended specifications. Use an oscilloscope to measure the input and output signals and look for signs of oscillation or instability. If the issue persists, try replacing the device or consulting with an onsemi application engineer for further assistance.
  • Yes, the NCS21802MUTBG is suitable for use in high-reliability and safety-critical applications, such as automotive, aerospace, and industrial control systems. However, it's essential to follow the recommended design and testing guidelines outlined in the datasheet and to consult with onsemi's application engineers to ensure that the device meets the specific requirements of the application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCS21802MUTBG Overview

Use the download button to access the NCS21802MUTBG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCS21, or try a keyword search, such as Operational Amplifiers
