NCS21914DR2G - onsemi

Description: Low Offset Voltage: 25 µV Max; Low Offset Drift:0.085 µV/°C max; Supply Voltage: 4 to 36V; Quiescent Current: 570 µA Max; Low Noise: 22 nV/√Hz typical; Gain-Bandwidth Product: 2 MHz typical; Rail−to−Rail Output; Integrated EMI Filters

Download NCS21914DR2G Model

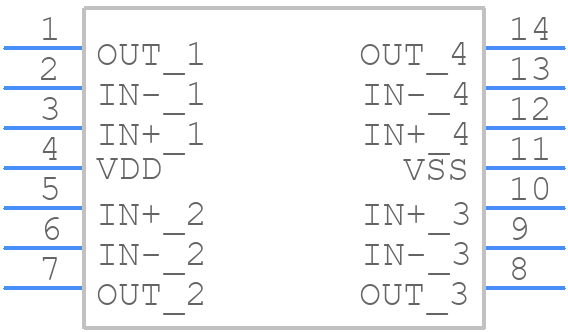

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCS21914DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-14
click to zoom
3D Models
NCS21914DR2G - onsemi  - 3D model - Small Outline Packages - SOIC-14
click to zoom

NCS21914DR2G Details

  • Manufacturer Part Number:

    NCS21914DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-14

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751A-03

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.75

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0035 µA

  • Bias Current-Max (IIB) @25C:

    0.0005 µA

  • Common-mode Reject Ratio-Min:

    110 dB

  • Common-mode Reject Ratio-Nom:

    130 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.0035 µA

  • Input Offset Voltage-Max:

    25 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUT LINE

  • Packing Method:

    TR

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    1.6 V/us

  • Supply Current-Max:

    2.28 mA

  • Supply Voltage Limit-Max:

    40 V

  • Supply Voltage-Nom (Vsup):

    4 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    2000

  • Voltage Gain-Min:

    1778279

  • Wideband:

    NO

  • Width:

    3.9 mm

NCS21914DR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCS21914DR2G involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, using a shielded inductor and placing it close to the device can help reduce EMI.
  • To ensure the stability of the output voltage, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, using a low-ESR output capacitor and a high-quality inductor can help improve stability.
  • The maximum ambient temperature range for the NCS21914DR2G is -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures, so it's essential to follow the recommended operating conditions.
  • Yes, the NCS21914DR2G is suitable for high-reliability applications. It's manufactured using a robust process, and onsemi provides a high level of quality control and testing. However, it's essential to follow the recommended operating conditions and design guidelines to ensure the device's reliability.
  • To troubleshoot issues with the NCS21914DR2G, start by checking the input voltage, output voltage, and current. Verify that the device is properly soldered and that the PCB layout follows the recommended guidelines. If the issue persists, consult the datasheet and application notes or contact onsemi's technical support.
