Part Image

NCS2200SN1T1G - onsemi

Description: Operating Voltage of 0.85 V to 6.0 V; Rail-to-rail Input/Output Performance; Low Supply Current of 10 µA; No Phase Inversion/Glitchless transitioning in or out of Tri-State Mode; Complementary or Open Drain Output Configuration; Available with the Enable Function

Download NCS2200SN1T1G Model

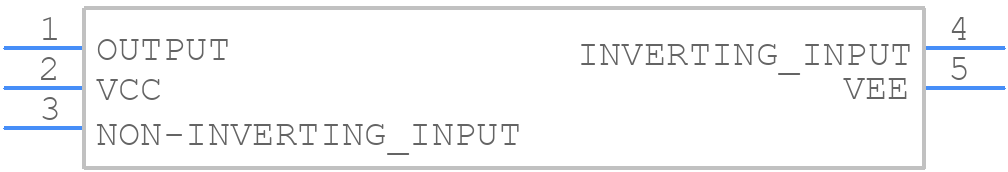

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCS2200SN1T1G - onsemi PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - NCS2200SN1T1G
click to zoom
3D Models
NCS2200SN1T1G - onsemi  - 3D model - SOT23 (5-Pin) - NCS2200SN1T1G
click to zoom

NCS2200SN1T1G Details

  • Manufacturer Part Number:

    NCS2200SN1T1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOP-5

  • Pin Count:

    5

  • Manufacturer Package Code:

    483

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.85

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.01 µA

  • Input Offset Voltage-Max:

    8000 µV

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    PUSH-PULL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    1100 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.017 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.5 mm

NCS2200SN1T1G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Also, consider using a thermal interface material to improve heat transfer.
  • The maximum allowed voltage on the input pins is 6.5V, which is the absolute maximum rating. Operating the device above this voltage can cause permanent damage.
  • Yes, but ensure the device is properly sealed or coated to prevent moisture ingress. Follow the recommended storage and handling procedures to prevent damage.
  • Check the power supply voltage, ensure proper connections, and verify the enable pin is properly biased. Also, check for any damage or overheating issues.
