NCS2200SQ2T2G - onsemi

Description: Operating Voltage of 0.85 V to 6.0 V; Rail-to-rail Input/Output Performance; Low Supply Current of 10 µA; No Phase Inversion/Glitchless transitioning in or out of Tri-State Mode; Complementary or Open Drain Output Configuration; Available with the Enable Function

Download NCS2200SQ2T2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

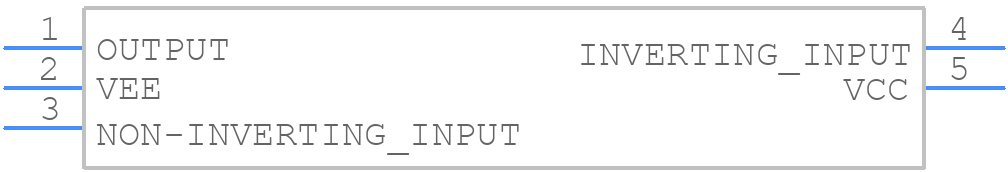

Symbol
NCS2200SQ2T2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCS2200SQ2T2G - onsemi PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - SC−88A (SC−70−5/SOT−353) CASE 419A−02 ISSUE L
click to zoom
3D Models
NCS2200SQ2T2G - onsemi - 3D model - SOT23 (5-Pin) - SC−88A (SC−70−5/SOT−353) CASE 419A−02 ISSUE L
click to zoom

NCS2200SQ2T2G Details

  • Manufacturer Part Number:

    NCS2200SQ2T2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SC-88A (SC-70-5 / SOT-353)

  • Pin Count:

    5

  • Manufacturer Package Code:

    419A-02

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.85

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.01 µA

  • Input Offset Voltage-Max:

    8000 µV

  • JESD-30 Code:

    R-PDSO-G5

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    PUSH-PULL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP5/6,.08

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    1100 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.017 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.25 mm

NCS2200SQ2T2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCS2200SQ2T2G involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended PCB layout, use a low-ESR output capacitor, and add a small resistor (e.g., 10 ohms) in series with the output capacitor. Additionally, ensure that the input voltage is within the recommended range and the device is operated within its specified temperature range.
  • The maximum output current of the NCS2200SQ2T2G is 2A. However, the device can deliver higher currents for short durations. It's essential to consider the thermal limitations and ensure the device is properly heatsinked to prevent overheating.
  • The NCS2200SQ2T2G is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal management and ensure the device is properly heatsinked to prevent overheating.
  • To protect the NCS2200SQ2T2G from input voltage transients, use a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit at the input. Additionally, ensure that the input capacitor is rated for the maximum input voltage and has a low ESR.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCS2200SQ2T2G Overview

Use the download button to access the NCS2200SQ2T2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCS22, or try a keyword search, such as Comparators
