NCS2220AMUT1G footprint, schematic symbol and 3D model by onsemi

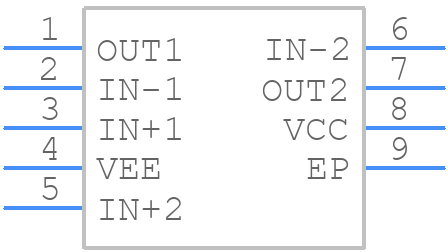

Symbol

click to zoom

PCB Footprints

NCS2220AMUT1G - onsemi PCB footprint - Other - Other - UDFN8, 1.6x1.6, 0.4P CASE 517AC ISSUE A_2026-2.2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NCS2220AMUT1G
Part Number NCS2220AMUT1G
Manufacturer onsemi
Pin Count 9
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - UDFN8, 1.6x1.6, 0.4P CASE 517AC ISSUE A_2026-2.2
Released Date Jun 24, 2026
Last Modified Date Jun 24, 2026 10:40 AM UTC
Pinout / Pin List Click Here (Member Only)

NCS2220AMUT1G Details

Manufacturer Part Number:
NCS2220AMUT1G
Brand Name:
onsemi
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
8 Pin UDFN, 1.6 x 1.6, 0.4P
Pin Count:
8
Manufacturer Package Code:
517AC
Country Of Origin:
Thailand
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
onsemi
YTEOL:
5.8
Amplifier Type:
COMPARATOR
Input Offset Voltage-Max:
8000 µV
JESD-30 Code:
S-PDSO-N8
JESD-609 Code:
e3
Length:
1.6 mm
Moisture Sensitivity Level:
1
Number of Functions:
2
Number of Terminals:
8
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Output Type:
PUSH-PULL
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Equivalence Code:
SOLCC8,.06,16
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Response Time-Nom:
500 ns
Seated Height-Max:
0.55 mm
Supply Current-Max:
0.017 mA
Supply Voltage Limit-Max:
6 V
Supply Voltage-Nom (Vsup):
3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
1.6 mm

NCS2220AMUT1G Frequently Asked Questions (FAQs)

A good PCB layout for the NCS2220AMUT1G involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, ensure that the output capacitor is properly sized and placed close to the device. Also, ensure that the input voltage is within the recommended range, and the output current is within the specified maximum rating. Additionally, a minimum ESR (Equivalent Series Resistance) of 0.1 ohms is recommended for the output capacitor.
The maximum ambient temperature for the NCS2220AMUT1G is 85°C. However, the device can operate up to 125°C junction temperature. It's essential to ensure proper thermal management to prevent overheating.
Yes, the NCS2220AMUT1G is suitable for high-reliability applications. It's manufactured using a robust process, and onsemi provides a high level of quality and reliability testing. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.
To troubleshoot issues with the NCS2220AMUT1G, start by verifying the input voltage, output voltage, and output current. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to check for any unusual voltage or current waveforms. If the issue persists, consult the datasheet and application notes or contact onsemi support for further assistance.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

NCS2220AMUT1G Overview

Use the download button to access the NCS2220AMUT1G schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like NCS22, or try a keyword search, such as Comparators
