NCS2333DR2G - onsemi

Description: Low Offset Voltage: 30 µV max for NCS2333; Low Noise: 1.1 µVpp, 0.1 Hz to 10 Hz; Quiescent Current per Channel: 17 µA Typical at 3.3 V Supply; Supply Voltage: 1.8 V to 5.5 V; Rail−to−Rail Input and Output; Zero Drift: 0.07 µV/°C max

Download NCS2333DR2G Model

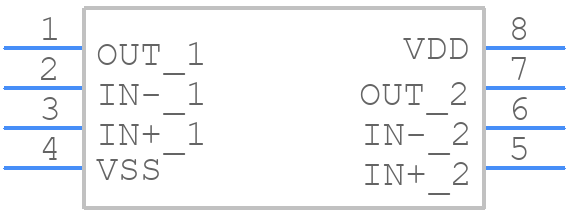

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCS2333DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−8 NB_1
click to zoom
3D Models
NCS2333DR2G - onsemi  - 3D model - Small Outline Packages - SOIC−8 NB_1
click to zoom

NCS2333DR2G Details

  • Manufacturer Part Number:

    NCS2333DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.22

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0004 µA

  • Common-mode Reject Ratio-Nom:

    118 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.0008 µA

  • Input Offset Voltage-Max:

    20 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    0.1 V/us

  • Supply Current-Max:

    0.035 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    255

  • Voltage Gain-Min:

    199526.23

  • Wideband:

    NO

  • Width:

    3.9 mm

NCS2333DR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCS2333DR2G involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a shielded inductor and to keep the device away from other noise-sensitive components.
  • To ensure the NCS2333DR2G operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive temperatures, and that the input voltage and output current are within the recommended operating ranges.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input of the NCS2333DR2G. The capacitor should be placed as close to the device as possible to minimize noise and ensure stable operation.
  • The NCS2333DR2G is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. If you need to operate the device in a high-temperature environment, ensure that you provide adequate cooling and follow the recommended derating guidelines.
  • To troubleshoot issues with the NCS2333DR2G, start by checking the input voltage, output voltage, and output current. Verify that the device is properly connected and that the input and output capacitors are of the correct value and type. If the issue persists, consult the datasheet and application notes for guidance.
