Part Image

NCS2333MUTBG - onsemi

Description: Low Offset Voltage: 30 µV max for NCS2333; Low Noise: 1.1 µVpp, 0.1 Hz to 10 Hz; Quiescent Current per Channel: 17 µA Typical at 3.3 V Supply; Supply Voltage: 1.8 V to 5.5 V; Rail−to−Rail Input and Output; Zero Drift: 0.07 µV/°C max

Download NCS2333MUTBG Model

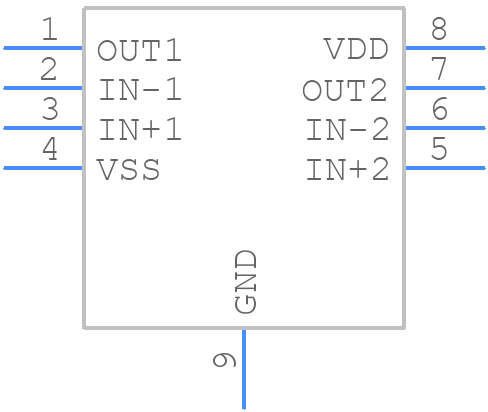

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCS2333MUTBG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - NCS2333MUTBG
click to zoom
3D Models
NCS2333MUTBG - onsemi  - 3D model - Small Outline No-lead - NCS2333MUTBG
click to zoom

NCS2333MUTBG Details

  • Manufacturer Part Number:

    NCS2333MUTBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UDFN-8

  • Manufacturer Package Code:

    517AW

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.75

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    CHOPPER-STAB

  • Average Bias Current-Max (IIB):

    0.0004 µA

  • Bias Current-Max (IIB) @25C:

    0.0004 µA

  • Common-mode Reject Ratio-Min:

    106 dB

  • Common-mode Reject Ratio-Nom:

    123 dB

  • Frequency Compensation:

    NO

  • Input Offset Current-Max (IIO):

    0.0008 µA

  • Input Offset Voltage-Max:

    30 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.55 mm

  • Slew Rate-Nom:

    0.15 V/us

  • Supply Current-Max:

    45 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    270

  • Voltage Gain-Min:

    199526.231

  • Wideband:

    NO

  • Width:

    2 mm

NCS2333MUTBG Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve thermal performance. A minimum of 2 oz copper thickness is recommended for the thermal pad, and it should be connected to a solid ground plane to dissipate heat efficiently.
  • Ensure that the device is operated within the recommended operating temperature range (-40°C to 150°C). Use a heat sink or thermal interface material to improve heat dissipation. Also, ensure that the device is not exposed to moisture or humidity, which can affect its reliability.
  • A ceramic capacitor with a value of 1-10 μF is recommended for input decoupling. The capacitor should be placed as close as possible to the device's input pins to minimize noise and ensure stable operation.
  • Use a TVS (Transient Voltage Suppressor) diode or a zener diode to protect the device from overvoltage conditions. Also, consider using a current limiting resistor or a fuse to protect the device from overcurrent conditions.
  • A ceramic capacitor with a value of 1-10 μF is recommended for output filtering. The capacitor should be placed as close as possible to the device's output pins to minimize noise and ensure stable operation.
