Description:Supports 2.5MHz UART interface for connection to a half duplex RS-485 driver; Maximum speed at full accuracy: 6000 rpm; Maximum functional rotor speed: 45000 rpm; Supply Voltage Range: 2.7V - 5.5V; Supports Battery Backup for Multi-turn count tracking; Sensor interface is highly configurable (up to 8 channels); Reports internal device temperature with programmable over temperature thresholding; Reports backup battery voltage with programmable low battery thresholding; 3us Response time to external master da
A good PCB layout for optimal thermal performance involves placing thermal vias under the IC, using a solid ground plane, and keeping the thermal path short and direct to the heat sink or thermal pad. Refer to onsemi's application note AND9233/D for more details.
To ensure reliable operation in high-temperature environments, follow the recommended operating conditions, use a suitable heat sink, and consider derating the device's power dissipation. Additionally, ensure that the PCB is designed to withstand the high temperatures and that the components are selected accordingly.
To mitigate EMI and RFI, use a shielded enclosure, keep the layout compact, and use a common-mode choke or ferrite bead on the input lines. Additionally, ensure that the PCB is designed with a solid ground plane, and use decoupling capacitors to reduce noise.
Select input capacitors with a low ESR, high ripple current rating, and a voltage rating that meets or exceeds the maximum input voltage. X7R or X5R ceramic capacitors are recommended. Refer to onsemi's application note AND9233/D for more details.
Using a different inductor value or type than recommended may affect the device's performance, efficiency, and stability. It's essential to follow the recommended inductor specifications to ensure optimal operation. If a different inductor is used, ensure that it meets the recommended inductance, DCR, and saturation current ratings.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCS32100XMNTXG Overview

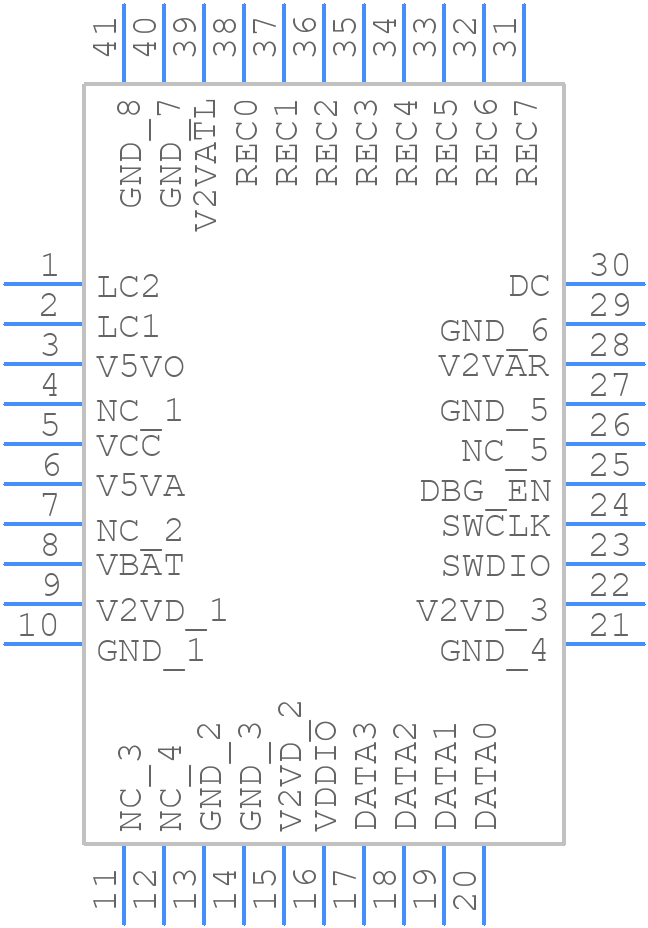

Use the download button to access the NCS32100XMNTXG schematic symbol, PCB footprint, and 3D model.
