NCS3402DR2G - onsemi

Description: Low Supply Current; Input Common Mode Range Exceeds the power supply rails.; Wide supply range.; Reverse Battery Protection; Open Drain Comparator

Download NCS3402DR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

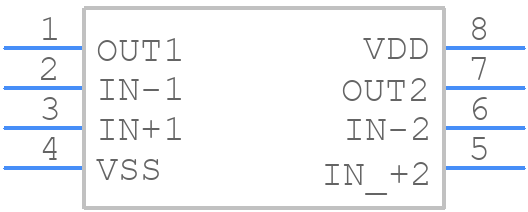

NCS3402DR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCS3402DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CAST 751-07 ISSUE AK
click to zoom
3D Models
NCS3402DR2G - onsemi - 3D model - Small Outline Packages - SOIC-8 NB CAST 751-07 ISSUE AK
click to zoom

NCS3402DR2G Details

  • Manufacturer Part Number:

    NCS3402DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.15

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.003 µA

  • Bias Current-Max (IIB) @25C:

    0.00025 µA

  • Input Offset Voltage-Max:

    4400 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    220000 ns

  • Seated Height-Max:

    1.55 mm

  • Supply Current-Max:

    0.00095 mA

  • Supply Voltage Limit-Max:

    17 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCS3402DR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCS3402DR2G involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a shielded inductor and to keep the switching node (SW) away from sensitive analog nodes.
  • The inductor value depends on the output voltage, output current, and switching frequency. A good starting point is to use the inductor value recommended in the datasheet (e.g., 1.5 μH for the NCS3402DR2G). Then, adjust the value based on the specific application requirements, such as output voltage ripple and efficiency.
  • The maximum ambient temperature for the NCS3402DR2G is 125°C. However, the device can operate at higher temperatures with derating. It's essential to consider the thermal design and heat dissipation in the system to ensure reliable operation.
  • To ensure stability, follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor is sufficient to filter the output voltage, and the feedback network is properly designed. It's also recommended to add a small capacitor (e.g., 10 nF) between the COMP pin and GND to improve stability.
  • A ceramic capacitor with a value of 10 μF to 22 μF is recommended for the input capacitor. The capacitor should have a voltage rating of at least 1.5 times the maximum input voltage. X5R or X7R dielectric capacitors are suitable for this application.
