Part Image

NCS36510MNTXG - onsemi

Description: RF System on a Chip - SoC Low Power SoC

Download NCS36510MNTXG Model

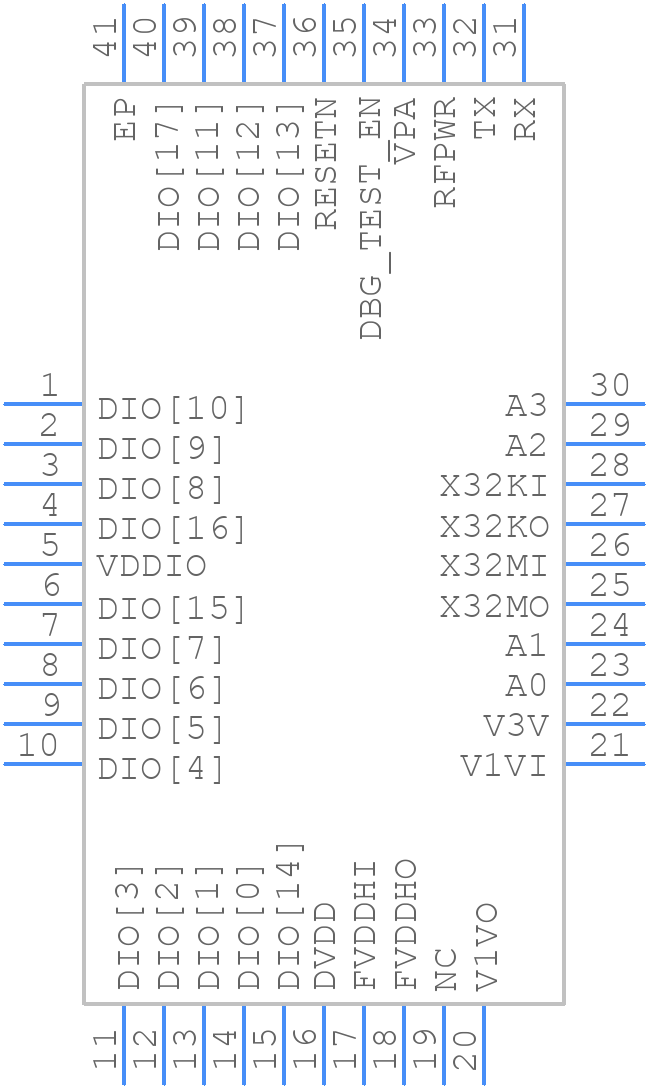

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCS36510MNTXG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40 PIN QFN, 6x6 MN SUFFIX
click to zoom
3D Models
NCS36510MNTXG - onsemi  - 3D model - Quad Flat No-Lead - 40 PIN QFN, 6x6 MN SUFFIX
click to zoom

NCS36510MNTXG Details

  • Manufacturer Part Number:

    NCS36510MNTXG

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer Package Code:

    488AR

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

NCS36510MNTXG Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the device and to connect it to a thermal plane or a heat sink.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, use a heat sink or thermal plane, and ensure good airflow. Additionally, consider using thermal interface materials and following the recommended operating temperature range.
  • The recommended input capacitors are 10uF to 22uF X7R or X5R ceramic capacitors, and the recommended output capacitors are 10uF to 22uF X7R or X5R ceramic capacitors. The capacitor values may vary depending on the specific application and operating conditions.
  • To troubleshoot issues with the device not turning on or not regulating properly, check the input voltage, ensure proper connections, and verify that the enable pin is properly biased. Also, check for any short circuits, overheating, or excessive current draw. Consult the datasheet and application notes for more detailed troubleshooting guidelines.
  • Operating the device beyond the recommended operating conditions can lead to reduced reliability, decreased performance, and potentially even device failure. It's essential to follow the recommended operating conditions, including voltage, current, and temperature ranges, to ensure reliable operation and prevent damage to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCS36510MNTXG Overview

Use the download button to access the NCS36510MNTXG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCS36, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
