NCS4-232+ - Mini-Circuits

Description: Ceramic Balun RF Transformer. 50Ω 1600 to 2300 MHz 1:4 Ratio.

Download NCS4-232+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

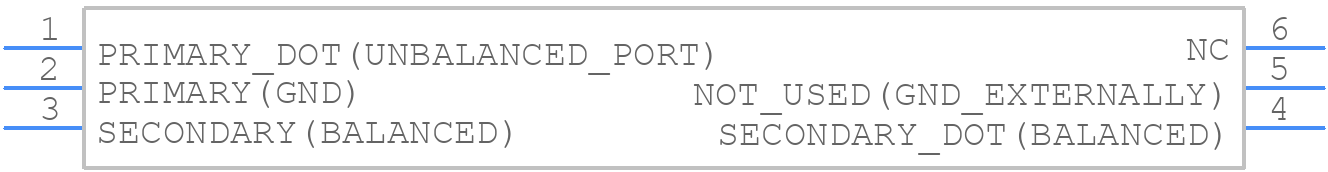

NCS4-232+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
NCS4-232+ - Mini-Circuits PCB footprint - Other - Other - NCS4-232+-1
click to zoom
3D Models
NCS4-232+ - Mini-Circuits - 3D model - Other - NCS4-232+-1
click to zoom

NCS4-232+ Details

  • Manufacturer Part Number:

    NCS4-232+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.45

  • Additional Feature:

    OHM RATIO IS 4

  • Cut-off Frequency-Min:

    1600 MHz

  • Height:

    0.84 mm

  • Insertion Loss:

    1 dB

  • Length:

    2.01 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:4

  • Width:

    1.24 mm
