Part Image

NCS4-272+ - Mini-Circuits

Description: Ceramic Balun RF Transformer

Download NCS4-272+ Model

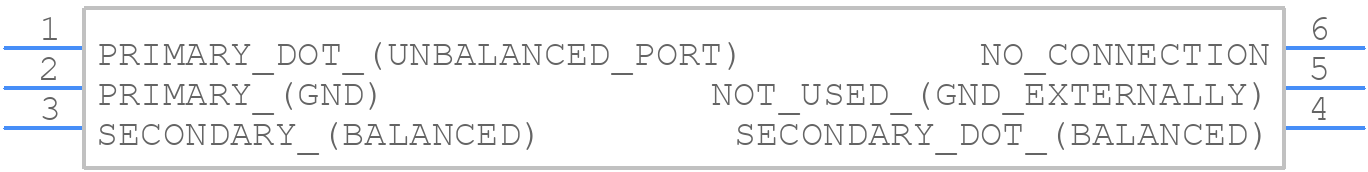

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCS4-272+ - Mini-Circuits PCB footprint - Other - Other - NCS4-272+-2
click to zoom
3D Models
NCS4-272+ - Mini-Circuits  - 3D model - Other - NCS4-272+-2
click to zoom

NCS4-272+ Details

  • Manufacturer Part Number:

    NCS4-272+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.45

  • Additional Feature:

    OHM RATIO IS 4

  • Cut-off Frequency-Min:

    2300 MHz

  • Height:

    0.84 mm

  • Insertion Loss:

    1 dB

  • JESD-609 Code:

    e3

  • Length:

    2.01 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Transformer Type:

    RF TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:4

  • Width:

    1.24 mm

NCS4-272+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Impedance matching is critical for optimal performance. Mini-Circuits provides a set of impedance matching networks in their application notes, which can be used as a starting point. Additionally, simulation tools like ADS or AWR can be used to optimize the matching network for specific system requirements.
  • While the datasheet doesn't specify a maximum power handling, Mini-Circuits recommends derating the device to ensure reliable operation. As a general rule, it's recommended to limit the input power to 1 dB compression point (P1dB) to avoid damage or degradation.
  • Yes, the NCS4-272+ can be used in a push-pull configuration to improve linearity and reduce distortion. However, it's essential to ensure that the devices are properly matched and biased to achieve optimal performance.
  • The thermal resistance of the NCS4-272+ is not explicitly stated in the datasheet. However, Mini-Circuits provides a thermal model in their application notes, which can be used to estimate the junction temperature and thermal resistance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCS4-272+ Overview

Use the download button to access the NCS4-272+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCS4-, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
