NCS4-63+ - Mini-Circuits

Description: Signal Conditioning RF XFMR / SURF MT / RoHS.,

Download NCS4-63+ Model

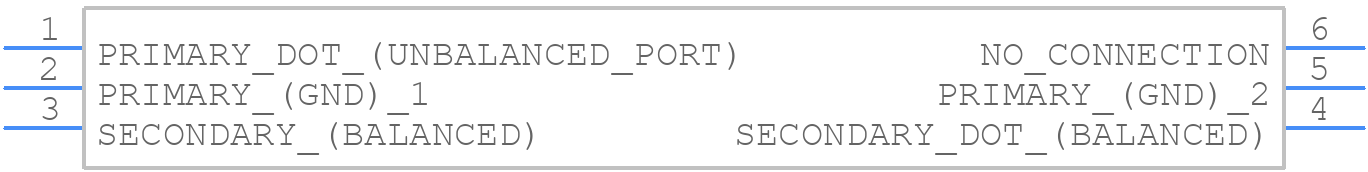

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCS4-63+ - Mini-Circuits PCB footprint - Other - Other - NCS4-63+-1
click to zoom
3D Models
NCS4-63+ - Mini-Circuits  - 3D model - Other - NCS4-63+-1
click to zoom

NCS4-63+ Details

  • Manufacturer Part Number:

    NCS4-63+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.44

  • Additional Feature:

    OHM RATIO IS 4

  • Cut-off Frequency-Min:

    4500 MHz

  • Height:

    0.84 mm

  • Insertion Loss:

    1 dB

  • Length:

    2.01 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:4

  • Width:

    1.24 mm

NCS4-63+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-012, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The NCS4-63+ has a nominal impedance of 50 ohms. To impedance match, you can use a pi-network or a T-network topology with resistors, capacitors, and inductors. Mini-Circuits also provides a impedance matching calculator on their website to help with the design.
  • The maximum power handling of the NCS4-63+ is not explicitly stated in the datasheet. However, according to Mini-Circuits' application engineers, the device can handle up to 1W of continuous power and 2W of peak power. It's essential to derate the power handling based on the operating frequency and temperature.
  • While the NCS4-63+ is primarily designed for linear applications, it can be used in switching applications with some caution. However, the device may not be optimized for high-speed switching, and the switching frequency should be limited to below 100 MHz to avoid excessive power dissipation and potential damage.
  • Common issues with the NCS4-63+ include poor return loss, high insertion loss, and overheating. To troubleshoot, check the PCB layout and footprint, ensure proper impedance matching, and verify the power handling. Also, inspect the device for signs of physical damage or overheating. Mini-Circuits also provides a troubleshooting guide on their website.
