NCS7101SN2T1G - onsemi

Description: Low Voltage, Single Supply Operation (1.8 V and Ground to 10 V and Ground); 1.0 pA Input Bias Current; Unity Gain Bandwidth of 1.0 MHz at 5.0 V, 0.9 MHz at 1.8 V; Output Voltage Swings Within 50 mV of Both Rails @ 1.8 V; No Phase Reversal on the Output for Over-Driven Input Signals; Input Offset Trimmed to 1.0 mV; Low Supply Current (ID = 1.0 mA); Works Down to Two Discharged NiCd Battery Cells; ESD Protected Inputs Up to 2.0 kV

Download NCS7101SN2T1G Model

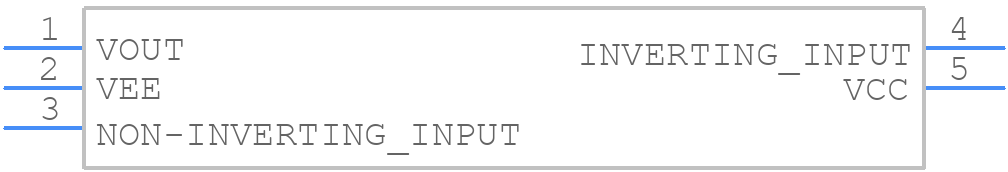

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCS7101SN2T1G - onsemi PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - TSOP−5 CASE  483 ISSUE N
click to zoom
3D Models
NCS7101SN2T1G - onsemi  - 3D model - SOT23 (5-Pin) - TSOP−5 CASE  483 ISSUE N
click to zoom

NCS7101SN2T1G Details

  • Manufacturer Part Number:

    NCS7101SN2T1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOP-5

  • Pin Count:

    5

  • Manufacturer Package Code:

    483

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.82

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Common-mode Reject Ratio-Nom:

    60 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    9000 µV

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -5 V

  • Neg Supply Voltage-Nom (Vsup):

    -2.5 V

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TAPE AND REEL

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Min:

    0.7 V/us

  • Slew Rate-Nom:

    1.2 V/us

  • Supply Current-Max:

    1.5 mA

  • Supply Voltage Limit-Max:

    5 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1000

  • Voltage Gain-Min:

    16000

  • Wideband:

    NO

  • Width:

    1.5 mm
