NCT375DMR2G - onsemi

Description: ON SEMICONDUCTOR - NCT375DMR2G - Temperature Sensor IC, Digital, ± 1°C, -55 °C, 125 °C, TSSOP, 8 Pins

Download NCT375DMR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

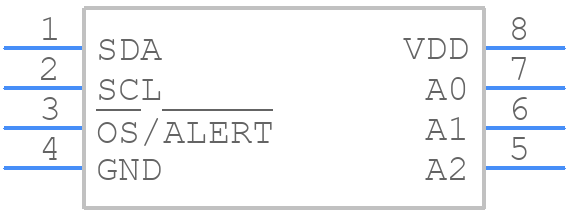

NCT375DMR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCT375DMR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - MICRO8 CASE 846A-02 ISSUE H
click to zoom
3D Models
NCT375DMR2G - onsemi - 3D model - Small Outline Packages - MICRO8 CASE 846A-02 ISSUE H
click to zoom

NCT375DMR2G Details

  • Manufacturer Part Number:

    NCT375DMR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer Package Code:

    846A-02

  • Country Of Origin:

    Malaysia

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    3 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    1.1 mm

  • Body Length or Diameter:

    3 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Operating Current-Max:

    0.8 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Termination Type:

    SOLDER

NCT375DMR2G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to ensure good heat dissipation.
  • Calibrate the device using the calibration coefficients provided in the datasheet. Ensure that the device is properly soldered and that the thermal interface material is applied correctly.
  • The maximum allowed voltage on the VDD pin is 3.6V. Exceeding this voltage may damage the device.
  • Yes, the device is rated for operation up to 150°C. However, the accuracy of the temperature measurement may degrade at high temperatures.
  • The device can be interfaced with a microcontroller using the I2C or SMBus interface. The device address can be set using the A0, A1, and A2 pins.
