NCT72CMTR2G - onsemi

Description: On-Chip and Remote Temperature Sensor; 0.25°C Resolution/1°C Accuracy on Remote Channel; 1°C Resolution/1°C Accuracy on Local Channel; Series Resistance Cancellation up to 1.5 kΩ; Extended, Switchable Temperature Measurement Range 0°C to +127°C (Default) or -64°C to +191°C; Pin and Register Compatible with NCT1008; Remote /THERM limit of 108°C; 2-Wire SMBus/I2C Serial Interface with SMBus Alert Support; Programmable Over/Undertemperature Limits; Offset Registers for System Calibration; Up to Two Overtempera

Download NCT72CMTR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

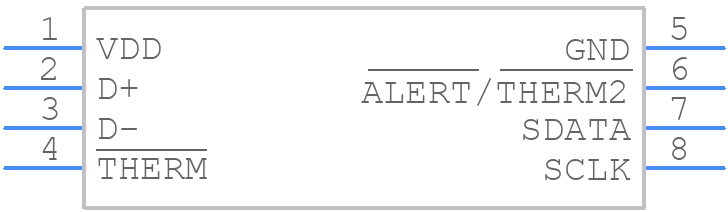

Symbol
NCT72CMTR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCT72CMTR2G - onsemi PCB footprint - Other - Other - NCT72CMTR2G-3
click to zoom
3D Models
NCT72CMTR2G - onsemi - 3D model - Other - NCT72CMTR2G-3
click to zoom

NCT72CMTR2G Details

  • Manufacturer Part Number:

    NCT72CMTR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN8 2x2, 0.5P

  • Pin Count:

    8

  • Manufacturer Package Code:

    511AT

  • Country Of Origin:

    Malaysia

  • Manufacturer:

    onsemi

  • Accuracy-Max (Cel):

    2.5 Cel

  • Body Breadth:

    2 mm

  • Body Height:

    0.725 mm

  • Body Length or Diameter:

    2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    8

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.35 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Output Voltage-Min:

    0.4 V

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

NCT72CMTR2G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the package can help to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended.
  • Ensure that the device is operated within the recommended junction temperature range (TJ) of -40°C to 150°C. Use a heat sink or thermal interface material to reduce thermal resistance.
  • The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. Operating the device at 5V or lower is recommended for reliable operation.
  • Yes, the NCT72CMTR2G is rated for operation in humid environments. However, it's essential to follow proper PCB design and assembly guidelines to prevent moisture-related issues.
  • Check the PCB layout, component placement, and soldering quality. Ensure that the device is properly decoupled, and the power supply is clean and stable. Consult the datasheet and application notes for guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCT72CMTR2G Overview

Use the download button to access the NCT72CMTR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCT72, or try a keyword search, such as Temperature Sensors
