NCT75DMR2G - onsemi

Description: 12-bit temperature-to-digital converter; Input voltage range from 3.0 V to 5.5 V; Temperature range from -55°C to +125°C; SMBus/I2C Interface; Overtemperature Indicator; Support for SMBus /ALERT; Shutdown mode for low power consumption; One-Shot Mode

Download NCT75DMR2G Model
Schematic

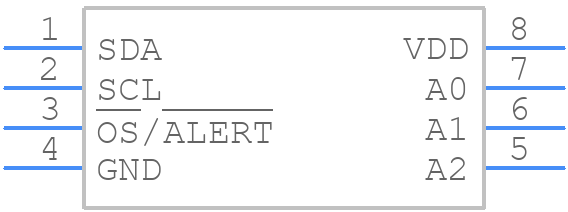

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCT75DMR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - MICRO8 CASE 846A-02 ISSUE H
click to zoom
3D Models
NCT75DMR2G - onsemi  - 3D model - Small Outline Packages - MICRO8 CASE 846A-02 ISSUE H
click to zoom

NCT75DMR2G Details

  • Manufacturer Part Number:

    NCT75DMR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    Micro 8 lead Surface Mount

  • Package Description:

    MICRO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    846A-02

  • Country Of Origin:

    Malaysia

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    onsemi

  • Accuracy-Max (Cel):

    3 Cel

  • Additional Feature:

    SEATED HEIGHT-MAX

  • Body Breadth:

    3 mm

  • Body Height:

    0.95 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.8 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Termination Type:

    SOLDER

NCT75DMR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCT75DMR2G involves placing the device near the thermal source, using a thermal pad or thermal via to dissipate heat, and keeping the surrounding area clear of other components to minimize thermal interference.
  • The NCT75DMR2G has a limited output current of 1mA. To handle this, use a buffer amplifier or an op-amp to amplify the output signal, or use a microcontroller with a high-impedance input to minimize the current drawn from the device.
  • The NCT75DMR2G does not require calibration, as it is a digital temperature sensor with an internal calibration. However, it's recommended to perform a system-level calibration to account for any system-specific errors or variations.
  • To ensure accurate temperature readings in high-noise environments, use a low-pass filter or a noise-reducing capacitor on the output pin, and consider using a shielded cable or a differential signal transmission to minimize electromagnetic interference.
  • The maximum cable length for the NCT75DMR2G's digital output depends on the specific application and the signal transmission protocol used. As a general guideline, keep the cable length as short as possible (less than 1 meter) to minimize signal degradation and ensure reliable data transmission.
