NCT75DR2G - onsemi

Description: 12-bit temperature-to-digital converter; Input voltage range from 3.0 V to 5.5 V; Temperature range from -55°C to +125°C; SMBus/I2C Interface; Overtemperature Indicator; Support for SMBus /ALERT; Shutdown mode for low power consumption; One-Shot Mode

Download NCT75DR2G Model

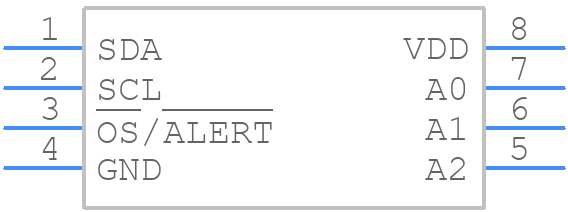

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCT75DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom
3D Models
NCT75DR2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom

NCT75DR2G Details

  • Manufacturer Part Number:

    NCT75DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    onsemi

  • Accuracy-Max (Cel):

    3 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.375 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.8 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Termination Type:

    SOLDER

NCT75DR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCT75DR2G involves placing the sensor near the thermal source, using a thermal via or thermal pad to connect the sensor to a copper plane, and minimizing the distance between the sensor and the thermal source.
  • The NCT75DR2G is specified to operate from 2.7V to 5.5V, but it's recommended to use a voltage regulator to ensure a stable 3.3V or 5V supply to minimize errors and ensure accurate temperature readings.
  • The NCT75DR2G does not require calibration, as it is a digital temperature sensor with an internal calibration. However, it's recommended to perform a system-level calibration to account for any system-specific errors or variations.
  • The 1.5°C accuracy specification is a maximum error over the entire operating temperature range. To achieve better accuracy, it's recommended to use a more precise reference temperature source for calibration, and to consider using multiple sensors for averaging or redundancy.
  • When connecting multiple NCT75DR2G sensors, it's recommended to use a separate power supply for each sensor, and to use a common ground plane to minimize noise and ensure accurate temperature readings.
