NCT75MNR2G - onsemi

Description: Temperature Sensor Digital, Local -55°C ~ 125°C 11 b 8-DFN (2x2)

Download NCT75MNR2G Model

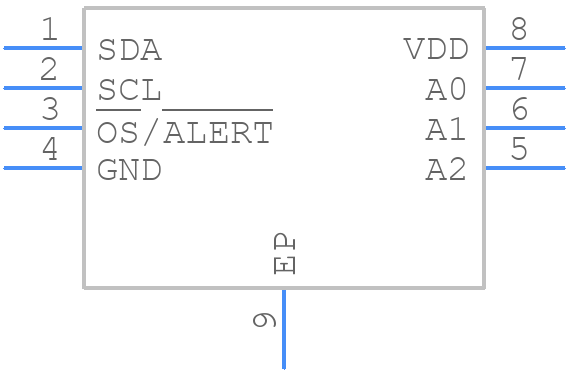

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCT75MNR2G - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN8 2x2, 0.5P CASE 506AA ISSUE F
click to zoom
3D Models
NCT75MNR2G - onsemi  - 3D model - Small Outline No-lead - DFN8 2x2, 0.5P CASE 506AA ISSUE F
click to zoom

NCT75MNR2G Details

  • Manufacturer Part Number:

    NCT75MNR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN8 2.0x2.0x0.9mm, 0.5p

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    506AA

  • Country Of Origin:

    Malaysia

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    onsemi

  • Accuracy-Max (Cel):

    3 Cel

  • Body Breadth:

    2 mm

  • Body Height:

    0.875 mm

  • Body Length or Diameter:

    2 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.8 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Termination Type:

    SOLDER

NCT75MNR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCT75MNR2G involves placing the sensor near the thermal source, using a thermal via or thermal pad to dissipate heat, and keeping the sensor away from high-current traces and heat-generating components.
  • The NCT75MNR2G is specified to operate from 2.7V to 5.5V, but it's recommended to use a voltage regulator to ensure a stable 3.3V or 5V supply to minimize errors and ensure accurate temperature readings.
  • A pull-up resistor value between 1kΩ to 10kΩ is recommended, depending on the specific application and noise environment. A higher value reduces power consumption but increases the rise time, while a lower value reduces the rise time but increases power consumption.
  • Self-heating effects can be minimized by using a low current supply, reducing the power dissipation in the sensor, and using a thermal pad or thermal via to dissipate heat. Additionally, the sensor can be calibrated to compensate for self-heating effects.
  • The NCT75MNR2G can be calibrated using a two-point calibration method, where the sensor is calibrated at two known temperatures (e.g., 0°C and 100°C) to determine the offset and gain coefficients. The coefficients can then be used to correct the temperature readings.
