A good PCB layout for optimal thermal performance involves placing the device on a thick copper plane, using thermal vias to dissipate heat, and keeping the component footprint small. A 2-3 layer PCB with a solid ground plane is recommended. Refer to onsemi's application note AND8327/D for more details.
To ensure reliable operation in high-temperature environments, follow proper thermal design guidelines, use a heat sink if necessary, and consider derating the device's power handling capabilities. Also, ensure that the device is operated within its specified temperature range (-40°C to 150°C).
The recommended soldering conditions for NCV1076P065G are: peak temperature 260°C, time above 217°C 30s, and time above 183°C 90s. Refer to onsemi's application note AND8003/D for more details on soldering and assembly guidelines.
To handle ESD protection during handling and assembly, follow proper ESD handling procedures, use ESD-protective packaging and materials, and ensure that all personnel handling the device are grounded. The NCV1076P065G has an ESD rating of 2 kV human body model (HBM) and 150 V machine model (MM).
When using the NCV1076P065G in a high-reliability application, consider the device's failure rate, which is specified in the datasheet. Also, ensure that the device is operated within its specified parameters, and follow proper design and manufacturing guidelines to minimize the risk of failure. onsemi also offers a range of high-reliability products and services, including burn-in and screening options.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV1076P065G Overview

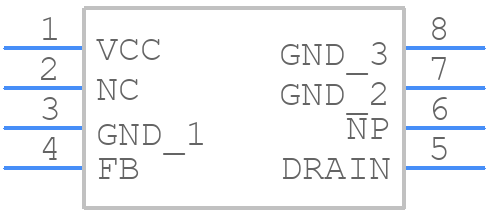

Use the download button to access the NCV1076P065G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV10,
or try a keyword search, such as Switching Regulator or Controllers
