NCV1362AADR2G - onsemi

Description: Quasi−Resonant with Valley Switching Operation; Maximum Frequency Clamp (No Clamp, 80, 110 and 140 kHz); Frequency Jittering; LFF and BO Feature on a Dedicated Pin; AEC-Qualified; Dual Frozen Peak Current; Constant Voltage Primary−Side Regulation < ±5%; Constant Current Primary−Side Regulation < ±5%

Download NCV1362AADR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

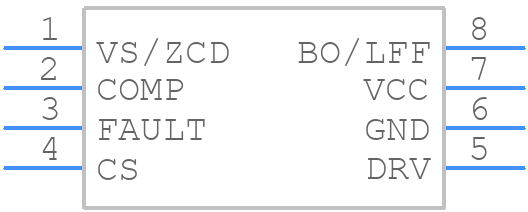

NCV1362AADR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV1362AADR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - NCV1362AADR2G
click to zoom
3D Models
NCV1362AADR2G - onsemi - 3D model - Small Outline Packages - NCV1362AADR2G
click to zoom

NCV1362AADR2G Details

  • Manufacturer Part Number:

    NCV1362AADR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOP, SOP8,.25

  • Manufacturer Package Code:

    751-07

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    15 Weeks

  • Date Of Intro:

    2020-05-26

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    7 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    2.3 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK BOOST

  • Switching Frequency-Max:

    130 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCV1362AADR2G Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad connected to a large copper area on the PCB, and ensuring good airflow around the device. A minimum of 2oz copper thickness is recommended. Refer to the onsemi application note AND8325/D for more details.
  • To ensure reliable operation in high-temperature environments, it is essential to follow proper thermal design and layout guidelines, and to derate the device's power dissipation according to the ambient temperature. Additionally, consider using a heat sink or thermal interface material to improve heat dissipation.
  • The recommended input and output capacitors for the NCV1362AADR2G are ceramic capacitors with a minimum capacitance of 10uF and a maximum ESR of 100mΩ. The capacitors should be placed as close as possible to the device's input and output pins.
  • To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and feedback resistors for correctness. Verify that the device is properly configured and that the output voltage is within the specified range. Use an oscilloscope to measure the output voltage and check for any signs of oscillation or instability.
  • The maximum allowed input voltage ripple for the NCV1362AADR2G is 10% of the nominal input voltage. Exceeding this limit may affect the device's performance and reliability.
