NCV1362ABDR2G - onsemi

Description: Quasi−Resonant with Valley Switching Operation; Maximum Frequency Clamp (No Clamp, 80, 110 and 140 kHz); Frequency Jittering; LFF and BO Feature on a Dedicated Pin; AEC-Qualified; Dual Frozen Peak Current; Constant Voltage Primary−Side Regulation < ±5%; Constant Current Primary−Side Regulation < ±5%

Download NCV1362ABDR2G Model

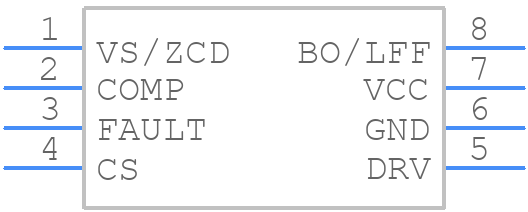

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV1362ABDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB
click to zoom
3D Models
NCV1362ABDR2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB
click to zoom

NCV1362ABDR2G Details

  • Manufacturer Part Number:

    NCV1362ABDR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751-07

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    22 Weeks

  • Date Of Intro:

    2020-05-26

  • Manufacturer:

    onsemi

  • YTEOL:

    3

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    7 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    2.3 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK BOOST

  • Switching Frequency-Max:

    130 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCV1362ABDR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components to allow for good airflow.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range, use a suitable heat sink, and ensure good airflow around the device. Additionally, consider using thermal interface materials and following proper soldering techniques.
  • Exceeding the maximum junction temperature (Tj) rating can lead to reduced device lifespan, increased thermal resistance, and potentially even device failure. It's crucial to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
  • To troubleshoot OVP and UVP issues, start by verifying the input voltage levels and ensuring they are within the recommended range. Check for any voltage transients or spikes that may be triggering the protection mechanisms. Also, review the device's fault detection and response mechanisms to ensure they are functioning correctly.
  • To ensure good EMC and minimize EMI, follow proper PCB layout and design guidelines, use shielding and filtering components as needed, and ensure that the device is properly grounded. Additionally, consider using EMI filters and common-mode chokes to reduce noise and interference.
