NCV2002SN2T1G - onsemi

Description: 0.9 V Guaranteed Operation; Standby Mode: ID = 1.9 µA at 1.0 V, Typical; Rail-to-Rail Common Mode Input Voltage Range; Rail-to-Rail Output Drive Capability; No Output Phase Reversal for Over-Driven Input Signals; 0.5 mV Trimmed Input Offset; 10 pA Input Bias Current; 1.1 MHz Unity Gain Bandwidth at ±2.5V, 1.0 MHz at ±0.5V

Download NCV2002SN2T1G Model

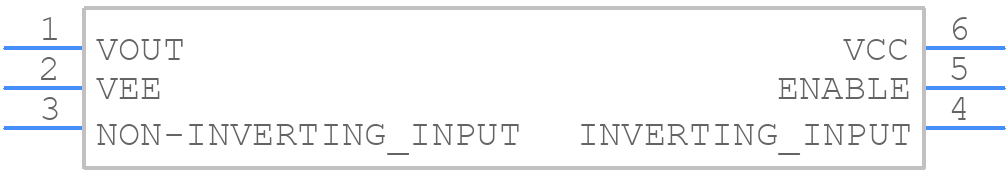

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV2002SN2T1G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSOP−6 CASE 318G−02 ISSUE V
click to zoom
3D Models
NCV2002SN2T1G - onsemi  - 3D model - Small Outline Packages - TSOP−6 CASE 318G−02 ISSUE V
click to zoom

NCV2002SN2T1G Details

  • Manufacturer Part Number:

    NCV2002SN2T1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOP-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    318G-02

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    onsemi

  • YTEOL:

    5.62

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Common-mode Reject Ratio-Min:

    60 dB

  • Common-mode Reject Ratio-Nom:

    82 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    7500 µV

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -3.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -2.5 V

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TAPE AND REEL

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Min:

    0.85 V/us

  • Slew Rate-Nom:

    1.2 V/us

  • Supply Current-Max:

    1 mA

  • Supply Voltage Limit-Max:

    3.5 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    900

  • Voltage Gain-Min:

    10000

  • Wideband:

    NO

  • Width:

    1.5 mm

NCV2002SN2T1G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCV2002SN2T1G involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, using a shielded inductor and placing it close to the device can help reduce EMI.
  • To ensure the NCV2002SN2T1G operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive temperatures, and the input voltage and output current are within the recommended operating ranges.
  • The NCV2002SN2T1G has a thermal pad that must be connected to a solid ground plane to dissipate heat. Ensure good thermal conductivity between the device and the PCB, and consider using thermal vias to improve heat dissipation.
  • To troubleshoot issues with the NCV2002SN2T1G, start by checking the input voltage, output voltage, and output current. Verify that the device is properly connected and that the PCB layout is correct. Use an oscilloscope to check for voltage spikes or oscillations, and consult the datasheet for troubleshooting guidelines.
  • Yes, the NCV2002SN2T1G is suitable for high-reliability applications. It is manufactured using a robust process, and onsemi provides a high level of quality and reliability testing. However, it is essential to follow proper design and manufacturing guidelines to ensure the device operates reliably in the application.
