Part Image

NCV20072DR2G - onsemi

Description: Rail−To−Rail Output; Wide Supply Range: 2.7 V to 36 V; Wide Bandwidth: 3 MHz typical at VS = 2.7 V; High Slew Rate: 2.8 V/µs typical at VS = 2.7 V; Low Supply Current: 405 µA per channel at VS = 2.7 V; Low Input Bias Current: 5 pA typical; Wide Temperature Range: −40°C to 125°C; NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable

Download NCV20072DR2G Model

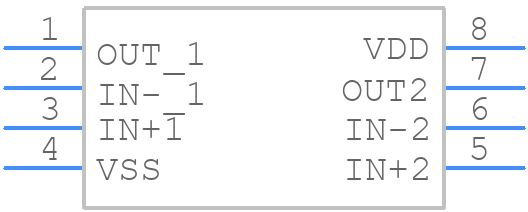

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV20072DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOiC_NB
click to zoom
3D Models
NCV20072DR2G - onsemi  - 3D model - Small Outline Packages - SOiC_NB
click to zoom

NCV20072DR2G Details

  • Manufacturer Part Number:

    NCV20072DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.75

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.0015 µA

  • Common-mode Reject Ratio-Nom:

    125 dB

  • Input Offset Voltage-Max:

    4000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    2.7 V/us

  • Supply Voltage Limit-Max:

    40 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    3200

  • Width:

    3.9 mm

NCV20072DR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCV20072DR2G involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, using a shielded inductor and placing it away from sensitive components can help reduce EMI.
  • To ensure the NCV20072DR2G operates within the recommended junction temperature range, use a thermal pad or heat sink, and ensure good airflow around the device. Also, avoid overheating the device during soldering and rework.
  • The recommended input capacitor type for the NCV20072DR2G is a low-ESR ceramic capacitor with a value of 10uF to 22uF. This helps to filter out noise and ensure stable operation.
  • To troubleshoot issues with the NCV20072DR2G, check the input voltage, output voltage, and current draw. Verify that the device is properly soldered and that the PCB layout is correct. Also, check for any signs of overheating, such as a hot device or a burning smell.
  • Yes, the NCV20072DR2G is suitable for high-reliability applications. It is built with high-quality materials and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.
