NCV21872DR2G - onsemi

Description: Low Input Offset Voltage of 45 µV; Low Input Offset Drift over Temperature and Time of 0.4 µV/°C; Automotive AEC-Q100 Qualified; Low Supply Current: 17 µA (typ at 3.3 V); Rail−to−Rail Input and Output; Excellent low frequency (< 1kHz) noise

Download NCV21872DR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

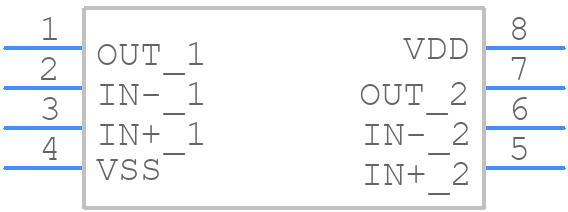

NCV21872DR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV21872DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SOIC
click to zoom
3D Models
NCV21872DR2G - onsemi - 3D model - Small Outline Packages - 8-Pin SOIC
click to zoom

NCV21872DR2G Details

  • Manufacturer Part Number:

    NCV21872DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751-07

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0004 µA

  • Bias Current-Max (IIB) @25C:

    0.0004 µA

  • Common-mode Reject Ratio-Min:

    102 dB

  • Common-mode Reject Ratio-Nom:

    118 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.0008 µA

  • Input Offset Voltage-Max:

    45 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    0.05 V/us

  • Supply Current-Max:

    0.09 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    270

  • Voltage Gain-Min:

    199526.23149

  • Wideband:

    NO

  • Width:

    3.9 mm
