NCV21912DMR2G - onsemi

Description: Low Offset Drift:0.085 µV/°C max; Supply Voltage: 4 to 36V; Quiescent Current: 570 µA Max; Low Noise: 22 nV/√Hz typical; Gain-Bandwidth Product: 2 MHz typical; Rail−to−Rail Output; Low Offset Voltage: 25 µV Max; Integrated EMI filters

Download NCV21912DMR2G Model

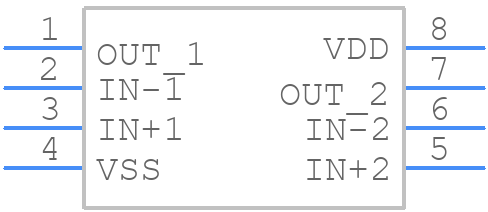

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV21912DMR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - Package  MICRO−8
click to zoom
3D Models
NCV21912DMR2G - onsemi  - 3D model - Small Outline Packages - Package  MICRO−8
click to zoom

NCV21912DMR2G Details

  • Manufacturer Part Number:

    NCV21912DMR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    Micro8

  • Package Description:

    MICRO-8

  • Manufacturer Package Code:

    846A-02

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.82

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0035 µA

  • Bias Current-Max (IIB) @25C:

    0.0005 µA

  • Common-mode Reject Ratio-Min:

    110 dB

  • Common-mode Reject Ratio-Nom:

    130 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.0035 µA

  • Input Offset Voltage-Max:

    25 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    1.6 V/us

  • Supply Current-Max:

    1.14 mA

  • Supply Voltage Limit-Max:

    40 V

  • Supply Voltage-Nom (Vsup):

    4 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    2000

  • Voltage Gain-Min:

    1778279

  • Wideband:

    NO

  • Width:

    3 mm

NCV21912DMR2G Frequently Asked Questions (FAQs)

  • A good PCB layout practice is to keep the input and output traces as short as possible, and to use a solid ground plane to reduce EMI. Additionally, it is recommended to place the input and output capacitors close to the device pins to minimize parasitic inductance.
  • To ensure proper biasing, make sure to connect the EN pin to a stable voltage source, and ensure the input voltage (VIN) is within the recommended range (2.5V to 5.5V). Also, ensure the output voltage (VOUT) is set to the desired value using the FB pin.
  • The maximum output current capability of the NCV21912DMR2G is 1.2A. However, it is recommended to derate the output current based on the ambient temperature and the desired output voltage to ensure reliable operation.
  • To protect the device from overvoltage and undervoltage conditions, it is recommended to add external overvoltage protection (OVP) and undervoltage protection (UVP) circuits. Additionally, ensure the input voltage (VIN) is within the recommended range (2.5V to 5.5V).
  • The thermal derating curve for the NCV21912DMR2G can be found in the datasheet. In general, the device's power dissipation capability decreases as the ambient temperature increases. It is recommended to derate the output current based on the ambient temperature to ensure reliable operation.
