NCV2901DR2G - onsemi

Description: Low Output Saturation Voltage: 130 mV (Typ) @ 4.0 mA; Single or Split Supply Operation; TTL and CMOS Compatible; Input Common Mode Voltage Range to Gnd; ESD Clamps on the Inputs Increase Reliability without Affecting Device Operation; Low Input Bias Current: 25 nA (Typ); Low Input Offset Current: +/- 5.0 nA (Typ)

Download NCV2901DR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

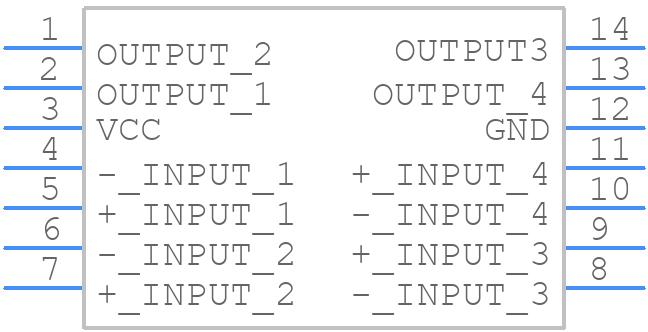

NCV2901DR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV2901DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - NCV2901DR2G
click to zoom
3D Models
NCV2901DR2G - onsemi - 3D model - Small Outline Packages - NCV2901DR2G
click to zoom

NCV2901DR2G Details

  • Manufacturer Part Number:

    NCV2901DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-14 NB

  • Pin Count:

    14

  • Manufacturer Package Code:

    751A-03

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    5.57

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.5 µA

  • Bias Current-Max (IIB) @25C:

    0.25 µA

  • Input Offset Voltage-Max:

    15000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-COLLECTOR

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    1300 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage Limit-Max:

    36 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCV2901DR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCV2901DR2G involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a shielded inductor and to keep the switching node (pin 5) away from sensitive nodes.
  • To ensure the NCV2901DR2G operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive voltage or current, and that the thermal design is adequate to keep the junction temperature below the maximum rating.
  • The recommended input capacitor value for the NCV2901DR2G is 10uF to 22uF, with an X5R or X7R dielectric type. This ensures low ESR and high ripple current capability.
  • To troubleshoot issues with the NCV2901DR2G, start by checking the input voltage, output voltage, and output current. Verify that the device is properly soldered and that the PCB layout is correct. Check for signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for voltage ripple or oscillations.
  • Yes, the NCV2901DR2G is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade devices and is suitable for use in harsh environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCV2901DR2G Overview

Use the download button to access the NCV2901DR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV29, or try a keyword search, such as Comparators
