NCV2901DTBR2G - onsemi

Description: Low Output Saturation Voltage: 130 mV (Typ) @ 4.0 mA; Single or Split Supply Operation; TTL and CMOS Compatible; Input Common Mode Voltage Range to Gnd; ESD Clamps on the Inputs Increase Reliability without Affecting Device Operation; Low Input Bias Current: 25 nA (Typ); Low Input Offset Current: +/- 5.0 nA (Typ)

Download NCV2901DTBR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

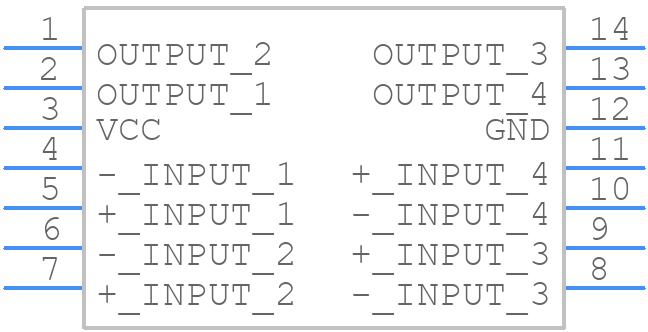

NCV2901DTBR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV2901DTBR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP−14 WB CASE 948G ISSUE C_1
click to zoom
3D Models
NCV2901DTBR2G - onsemi - 3D model - Small Outline Packages - TSSOP−14 WB CASE 948G ISSUE C_1
click to zoom

NCV2901DTBR2G Details

  • Manufacturer Part Number:

    NCV2901DTBR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    948G

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    5.57

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.5 µA

  • Bias Current-Max (IIB) @25C:

    0.25 µA

  • Input Offset Voltage-Max:

    15000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-COLLECTOR

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    1300 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage Limit-Max:

    36 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

NCV2901DTBR2G Frequently Asked Questions (FAQs)

  • A good PCB layout practice is to keep the input and output traces separate, use a solid ground plane, and minimize the loop area of the input and output traces to reduce EMI. Additionally, it's recommended to place the input and output capacitors close to the device pins.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, a minimum of 10uF capacitance is recommended on the output to ensure stability.
  • The maximum ambient temperature range for the NCV2901DTBR2G is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, so it's recommended to derate the output current and voltage accordingly.
  • Yes, the NCV2901DTBR2G is suitable for high-reliability applications. It's built with a robust design and has undergone rigorous testing to ensure its reliability. However, it's recommended to follow the recommended operating conditions and derating guidelines to ensure the device's reliability.
  • To troubleshoot issues with the NCV2901DTBR2G, start by checking the input and output voltages, and ensuring that the device is operating within the recommended operating conditions. Check for any signs of overheating, and verify that the PCB layout and component values are correct. If the issue persists, consult the datasheet and application notes for further guidance.
