Description:Common Mode Range Extends to Negative Supply; ESD Clamps on the Inputs Increase Ruggedness without Affecting Device Operation; True Differential Input Stage; Single Supply Operation: 3.0 V to 32 V (LM224, LM324, LM324A); Low Input Bias Currents: 100 nA Maximum (LM324A); Short Circuited Protected Outputs; Four Amplifiers Per Package; Industry Standard Pinouts; Internally Compensated; Pb-Free Packages are Available*
A good PCB layout for the NCV2902DTBR2G involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a shielded inductor and to keep the switching node (pin 5) away from sensitive nodes.
To ensure the NCV2902DTBR2G operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive temperatures, and the input voltage is within the recommended range. Also, ensure the output current is within the specified maximum rating.
A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. The capacitor should be placed close to the device's input pins to minimize noise and ensure stable operation.
To troubleshoot issues with the NCV2902DTBR2G, start by checking the PCB layout and ensuring it meets the recommended layout guidelines. Verify that the input and output capacitors are properly sized and placed. Check for any signs of overheating, and ensure the device is operated within its SOA. If issues persist, consult the datasheet and application notes for further guidance.
Yes, the NCV2902DTBR2G is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard, and onsemi provides a PPAP (Production Part Approval Process) documentation package to support automotive applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV2902DTBR2G Overview

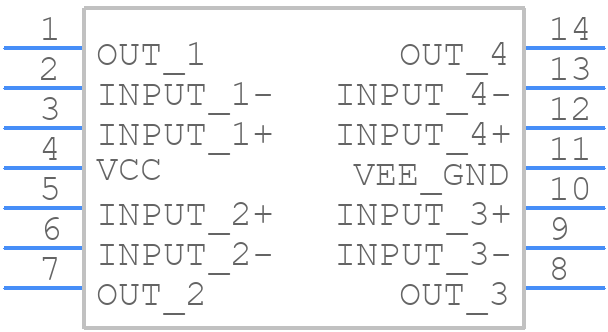

Use the download button to access the NCV2902DTBR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV29,
or try a keyword search, such as Operational Amplifiers
