Description:Low Input Offset Current: 5.0 nA; Low Input Offset Voltage: 2.0 mV (max) LM393A 5.0 mV (max) LM293/393; Low Input Bias Current: 25 nA; Wide Single-Supply Range: 2.0 Vdc to 36 Vdc; Output Voltage Compatible with DTL, ECL, TTL, MOS, and CMOS Logic Levels; ESD Clamps on the Inputs Increase the Ruggedness of the Device without Affecting Performance; Input Common Mode Range to Ground Level; Very Low Current Drain Independent of Supply Voltage: 0.4 mA; Split-Supply Range: +/-1.0 Vdc to +/-18 Vdc; Differential Inp
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Avoid placing thermal vias under the device, and keep the thermal pad clear of any obstacles.
To ensure reliable operation in high-temperature environments, ensure that the device is operated within its recommended operating temperature range (-40°C to 150°C). Use a heat sink or thermal pad to dissipate heat, and avoid overheating the device. Also, ensure that the PCB is designed to withstand high temperatures, and that all components are rated for the operating temperature range.
The recommended input capacitor is a 10uF ceramic capacitor with a voltage rating of 16V or higher. The recommended output capacitor is a 22uF ceramic capacitor with a voltage rating of 16V or higher. These capacitors should be placed as close to the device as possible to minimize noise and ensure stable operation.
To troubleshoot issues with the device's output voltage regulation, check the input voltage, output voltage, and output current. Ensure that the input voltage is within the recommended range, and that the output voltage is within the specified tolerance. Check for any signs of overheating, and verify that the output capacitor is properly connected and rated for the output voltage.
To mitigate EMI, use a shielded enclosure, and ensure that the PCB is designed with EMI in mind. Use a common-mode choke or ferrite bead on the input and output lines, and add decoupling capacitors to the input and output pins. Also, ensure that the device is placed away from other noise-sensitive components, and that the PCB is properly grounded.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV2903DR2G Overview

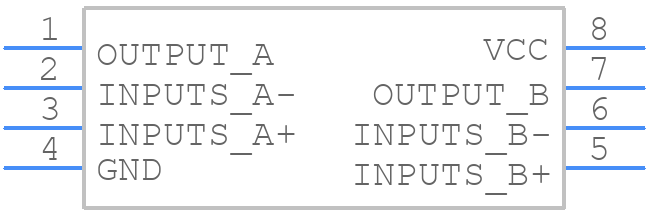

Use the download button to access the NCV2903DR2G schematic symbol, PCB footprint, and 3D model.
