NCV2904DMR2G - onsemi

Description: Short Circuit Protected Outputs; Low Input Bias Currents; Single Supply Operation: 3.0 V to 32 V ; Single and Split Supply Operation; Internally Compensated; ESD Clamps on the Inputs Increase Ruggedness of the Device without Affecting Operation; True Differential Input Stage; Common Mode Range Extends to Negative Supply; Pb-Free Packages are Available

Download NCV2904DMR2G Model

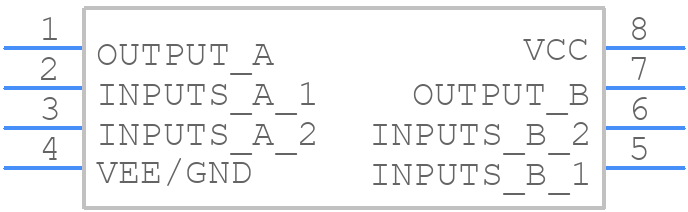

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV2904DMR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - Micro8 CASE 846A−02 ISSUE J
click to zoom
3D Models
NCV2904DMR2G - onsemi  - 3D model - Small Outline Packages - Micro8 CASE 846A−02 ISSUE J
click to zoom

NCV2904DMR2G Details

  • Manufacturer Part Number:

    NCV2904DMR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    Micro 8 lead Surface Mount

  • Pin Count:

    8

  • Manufacturer Package Code:

    846A-02

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    onsemi

  • YTEOL:

    5.8

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.5 µA

  • Bias Current-Max (IIB) @25C:

    0.25 µA

  • Common-mode Reject Ratio-Min:

    65 dB

  • Common-mode Reject Ratio-Nom:

    70 dB

  • Frequency Compensation:

    NO

  • Input Offset Current-Max (IIO):

    0.05 µA

  • Input Offset Voltage-Max:

    7000 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    0.6 V/us

  • Supply Current-Max:

    3 mA

  • Supply Voltage Limit-Max:

    32 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1000

  • Voltage Gain-Min:

    15000

  • Wideband:

    NO

  • Width:

    3 mm

NCV2904DMR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCV2904DMR2G involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a shielded inductor and to keep the switching node (pin 5) away from sensitive nodes.
  • To ensure the NCV2904DMR2G operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive temperatures, and the input voltage is within the recommended range. Also, ensure the output current is within the specified maximum rating.
  • The recommended input capacitor value for the NCV2904DMR2G is 10uF to 22uF, with an X5R or X7R dielectric type. This ensures low ESR and high ripple current capability.
  • To troubleshoot issues with the NCV2904DMR2G, first check the input voltage and ensure it's within the recommended range. Verify the input and output capacitors are properly connected and of the correct value. Check for any signs of overheating or physical damage to the device. Use an oscilloscope to verify the switching frequency and output voltage.
  • Yes, the NCV2904DMR2G is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is manufactured with a high level of quality and reliability.
