NCV2931ACDR2G - onsemi

Description: Internal Current Limiting with Thermal Shutdown; Low Bias Current; 60 V Load Dump Protection; Input-to-Output Voltage Differential of < 0.6 V @ 100 mA; Economical 5-Lead TO-220 Package with Two Optional Leadforms; -50 V Reverse Transient Protection; Available in Surface Mount SOP-8, D2PAK and DPAK Packages; Output Current in Excess of 100 mA; Ideally Suited for Battery Powered Equipment; Temporary Mirror-Image Protection; High Accuracy (+/-2%) Reference (LM2931AC) Available

Download NCV2931ACDR2G Model

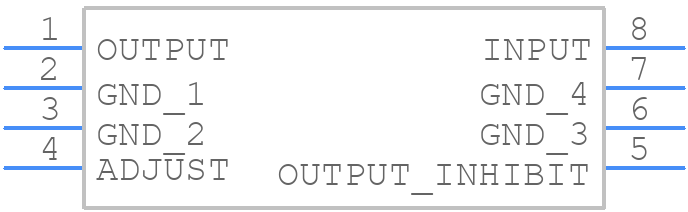

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV2931ACDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom
3D Models
NCV2931ACDR2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom

NCV2931ACDR2G Details

  • Manufacturer Part Number:

    NCV2931ACDR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.6 V

  • Dropout Voltage1-Nom:

    0.16 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Line Regulation-Max (%/V):

    1.25

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Output Current1-Max:

    0.1 A

  • Output Voltage1-Max:

    29.5 V

  • Output Voltage1-Min:

    2.7 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCV2931ACDR2G Frequently Asked Questions (FAQs)

  • A good thermal design should include a solid ground plane, thermal vias under the device, and a heat sink if possible. The datasheet provides some guidelines, but a more detailed application note is available from onsemi.
  • In addition to following the recommended PCB layout, ensure that the device is properly soldered, and the thermal interface material is applied correctly. Also, consider using a thermocouple to monitor the device temperature.
  • Exceeding the maximum junction temperature can lead to reduced lifespan, increased thermal resistance, and potentially even device failure. It's essential to ensure the device operates within the recommended temperature range.
  • Yes, the NCV2931ACDR2G is qualified for automotive and high-reliability applications. However, additional testing and validation may be required to meet specific industry standards.
  • Start by reviewing the application circuit and PCB layout for any potential design flaws. Then, use a thermal imaging camera or thermocouple to monitor the device temperature. Finally, consult the datasheet and onsemi's application notes for troubleshooting guidance.
