NCV2931AD-5.0R2G - onsemi

Description: Internal Current Limiting with Thermal Shutdown; Low Bias Current; 60 V Load Dump Protection; Input-to-Output Voltage Differential of < 0.6 V @ 100 mA; Economical 5-Lead TO-220 Package with Two Optional Leadforms; -50 V Reverse Transient Protection; Available in Surface Mount SOP-8, D2PAK and DPAK Packages; Output Current in Excess of 100 mA; Ideally Suited for Battery Powered Equipment; Temporary Mirror-Image Protection; High Accuracy (+/-2%) Reference (LM2931AC) Available

Download NCV2931AD-5.0R2G Model

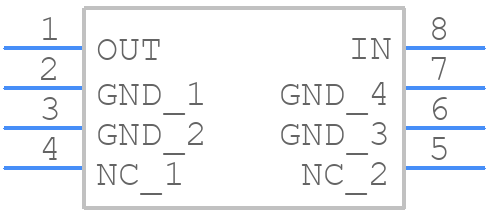

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV2931AD-5.0R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CAST 751-07
click to zoom
3D Models
NCV2931AD-5.0R2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB CAST 751-07
click to zoom

NCV2931AD-5.0R2G Details

  • Manufacturer Part Number:

    NCV2931AD-5.0R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.6 V

  • Dropout Voltage1-Nom:

    0.16 V

  • Input Voltage Absolute-Max:

    40 V

  • Input Voltage-Max:

    26 V

  • Input Voltage-Min:

    6 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Line Regulation-Max:

    0.03%

  • Load Regulation-Max:

    0.05%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.1 A

  • Output Voltage1-Max:

    5.25 V

  • Output Voltage1-Min:

    4.75 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    5%

  • Width:

    3.9 mm

NCV2931AD-5.0R2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCV2931AD-5.0R2G involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the stability of the output voltage, it's essential to use the recommended output capacitor value and type, and to ensure that the output capacitor is placed close to the device. Additionally, the input voltage should be within the recommended range, and the device should be operated within the recommended temperature range.
  • The maximum ambient temperature range for the NCV2931AD-5.0R2G is -40°C to 125°C. However, the device can operate at a junction temperature of up to 150°C.
  • Yes, the NCV2931AD-5.0R2G is suitable for high-reliability applications. It's manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it's essential to follow the recommended operating conditions and design guidelines to ensure the device operates within its specifications.
  • To troubleshoot issues with the NCV2931AD-5.0R2G, start by checking the input voltage, output voltage, and output current. Verify that the device is operated within its recommended specifications and that the PCB layout is correct. If the issue persists, consult the datasheet and application notes for guidance, or contact onsemi's technical support team for assistance.
