NCV3011DTBR2G - onsemi

Description: Input voltage range from 4.7 V to 28 V; 400 kHz operation; 0.8 V +/-1% Reference Voltage; Buffered external +1.25 V reference; Current limit and short circuit Protection; PowerGood output pin; Enable/Disable pin; Input and output voltage protection; External synchronization; AEC-Q100 and PPAP compliant (NCV3011)

Download NCV3011DTBR2G Model

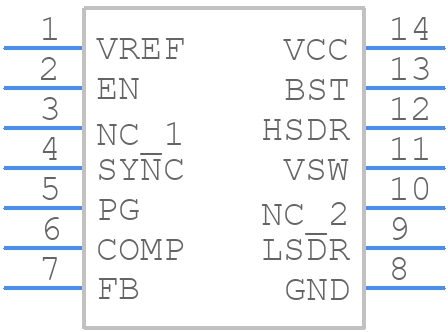

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV3011DTBR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP14 CASE 948G
click to zoom
3D Models
NCV3011DTBR2G - onsemi  - 3D model - Small Outline Packages - TSSOP14 CASE 948G
click to zoom

NCV3011DTBR2G Details

  • Manufacturer Part Number:

    NCV3011DTBR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP-14

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    948G

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    ADJUSTABLE OUTPUT VOLTAGE DOWN TO 0.8V

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    4.7 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.13 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    470 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

NCV3011DTBR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCV3011DTBR2G involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, using a shielded inductor and placing it away from sensitive components can help reduce EMI.
  • To ensure the NCV3011DTBR2G operates within the recommended junction temperature range, use a thermal pad or heat sink, and ensure good airflow around the device. Also, avoid overheating the device during soldering and rework.
  • Exceeding the maximum ratings of the NCV3011DTBR2G can lead to reduced reliability, permanent damage, or even device failure. It's essential to operate the device within the recommended specifications to ensure reliable operation.
  • To troubleshoot issues with the NCV3011DTBR2G, start by checking the input voltage, output voltage, and current. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for voltage ripple or oscillations. If the issue persists, consult the datasheet and application notes for guidance.
  • The NCV3011DTBR2G is a commercial-grade device, and its use in high-reliability or safety-critical applications may require additional testing and validation. Consult with onsemi's application engineers and review the device's reliability and quality data to determine its suitability for such applications.
