NCV30161MNWTXG - onsemi

Description: Adjustable LED Current; Thermal Shutdown Protection; AECQ100 qualified, PPAP capable; Single Pin Brightness and Enable/Disable Control using PWM

Download NCV30161MNWTXG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

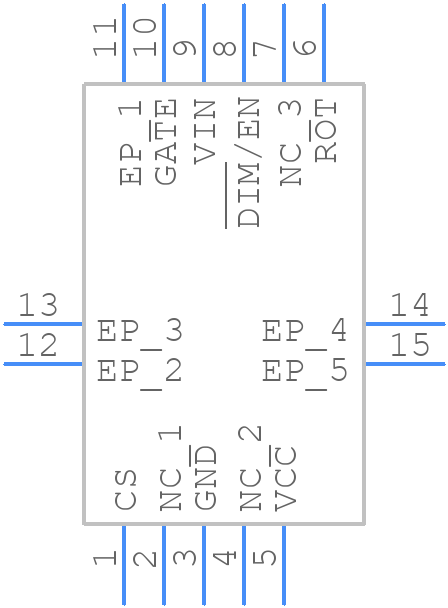

Symbol
NCV30161MNWTXG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV30161MNWTXG - onsemi PCB footprint - Other - Other - DFNW10, 3x3, 0.5P CASE 507AE ISSUE A
click to zoom
3D Models
NCV30161MNWTXG - onsemi - 3D model - Other - DFNW10, 3x3, 0.5P CASE 507AE ISSUE A
click to zoom

NCV30161MNWTXG Details

  • Manufacturer Part Number:

    NCV30161MNWTXG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFNW-10

  • Package Description:

    DFNW-10

  • Manufacturer Package Code:

    507AE

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.89

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    40 V

  • Supply Voltage-Min:

    6.3 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • fmax-Min:

    2.4 MHz

NCV30161MNWTXG Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would involve placing thermal vias under the device, using a solid ground plane, and keeping the thermal traces as short and wide as possible. It's also recommended to use a thermal pad on the bottom of the device.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal management system, and consider derating the device's power handling capabilities. Additionally, ensure that the device is properly soldered and the PCB is designed to minimize thermal stress.
  • The recommended soldering conditions for NCV30161MNWTXG are: peak temperature of 260°C, soldering time of 10-30 seconds, and a soldering iron temperature of 350-370°C. It's also recommended to use a solder with a melting point of 217-220°C.
  • To troubleshoot issues with the device's overcurrent protection feature, check the input voltage, output current, and sense resistor values. Ensure that the sense resistor is properly connected and that the device is not overheating. Also, verify that the overcurrent protection threshold is set correctly and that the device is not experiencing any electrical overstress.
  • Using a different sense resistor value than recommended can affect the accuracy of the overcurrent protection feature. A smaller sense resistor value may result in a higher overcurrent protection threshold, while a larger value may result in a lower threshold. It's essential to consult the datasheet and perform thorough testing to ensure that the device operates within the recommended specifications.
