NCV3063DR2G - onsemi

Description: Operation up to 40 V Input; Frequency operation up to 150 KHz; Internal thermal Shutdown with hysteresis; Cycle-by-Cycle Current Limiting; Excel Based Design Tool; Adjustable current limit

Download NCV3063DR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

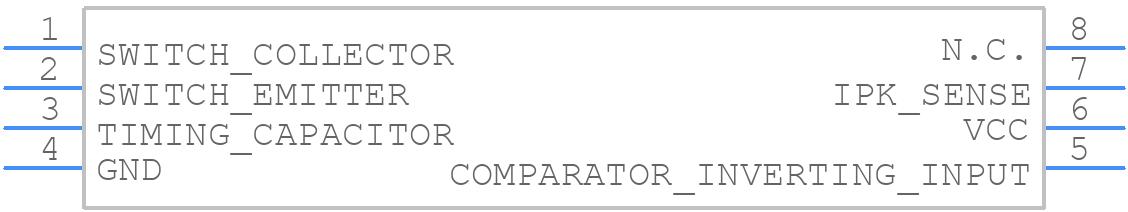

NCV3063DR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV3063DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 8 lead
click to zoom
3D Models
NCV3063DR2G - onsemi - 3D model - Small Outline Packages - 8 lead
click to zoom

NCV3063DR2G Details

  • Manufacturer Part Number:

    NCV3063DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8 Narrow Body-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.6

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    HYSTERETIC CURRENT MODE

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    7 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    190 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCV3063DR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCV3063DR2G involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a shielded inductor and to keep the switching node (pin 5) away from sensitive nodes.
  • To ensure the NCV3063DR2G operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive voltage or current, and that the thermal design is adequate to keep the junction temperature below the maximum rating.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. The capacitor should be placed close to the device's input pins to minimize noise and ensure stable operation.
  • To troubleshoot issues with the NCV3063DR2G, start by checking the PCB layout and ensuring that it follows the recommended layout guidelines. Next, verify that the input voltage and output current are within the recommended operating range. Use an oscilloscope to check for oscillations or instability, and ensure that the device is properly decoupled and filtered.
  • The NCV3063DR2G is rated for operation up to 150°C, but its performance and reliability may degrade at high temperatures. Ensure that the device is properly cooled and that the thermal design is adequate to keep the junction temperature below the maximum rating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCV3063DR2G Overview

Use the download button to access the NCV3063DR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV30, or try a keyword search, such as Switching Regulator or Controllers
