Description:Integrated 1.5 A Switch ; Input Voltage Range from 3 V to 40 V ; Low Feedback Voltage of 235 mV ; Cycle-by-Cycle Current Limit; No Control Loop Compensation Required ; Frequency of Operation Adjustable up to 250 kHz; Operation With All Ceramic Output Capacitors or No Output Capacitance ; Analog and Digital PWM Dimming Capability; Internal Thermal Shutdown with Hysteresis
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using a 2-layer or 4-layer board, and minimizing the distance between the device and the thermal pad or heat sink.
To ensure reliable operation in high-temperature environments, ensure that the device is operated within the recommended temperature range, use a heat sink or thermal pad, and consider using a thermal interface material to improve heat transfer.
Exceeding the maximum junction temperature can lead to reduced device lifespan, decreased performance, and potentially even device failure. It is essential to ensure that the device operates within the recommended temperature range.
To handle ESD protection for the NCV3065DR2G, follow proper handling and storage procedures, use ESD-protective packaging, and consider implementing ESD protection circuits in the design.
When assembling and reworking the PCB, ensure that the device is handled by trained personnel, use proper soldering techniques, and follow the recommended rework procedures to avoid damaging the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV3065DR2G Overview

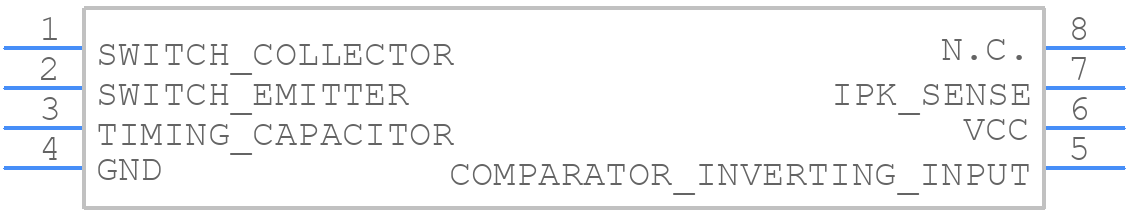

Use the download button to access the NCV3065DR2G schematic symbol, PCB footprint, and 3D model.
