NCV3066DR2G - onsemi

Description: Integrated 1.5 A Switch; Input Voltage Range from 3 V to 40 V; Low Feedback Voltage of 235 mV ; Cycle-by-Cycle Current Limit; No Control Loop Compensation Required ; Frequency of Operation Adjustable up to 250 kHz; Operation With All Ceramic Output Capacitors or No Output Capacitance; Internal Thermal Shutdown with Hysteresis; ON/OFF pin for direct PWM dimming; ON/OFF pin disabling the regulator

Download NCV3066DR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

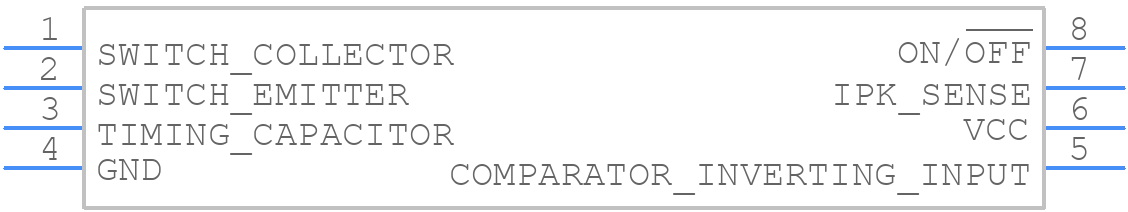

Symbol
NCV3066DR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV3066DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8
click to zoom
3D Models
NCV3066DR2G - onsemi - 3D model - Small Outline Packages - SOIC-8
click to zoom

NCV3066DR2G Details

  • Manufacturer Part Number:

    NCV3066DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.89

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    7 mA

  • Supply Voltage-Max:

    40 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • fmax-Min:

    0.25 MHz

NCV3066DR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCV3066DR2G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a shielded inductor and to keep the switching node (SW) away from sensitive analog circuits.
  • To ensure the NCV3066DR2G operates within its SOA, monitor the input voltage, output current, and junction temperature. Make sure the input voltage is within the recommended range, the output current is within the maximum rating, and the junction temperature is below the maximum rating of 150°C.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. The capacitor should be rated for the maximum input voltage and should be placed as close to the IC as possible.
  • To optimize the inductor selection, consider the inductor's saturation current, DC resistance, and core material. A shielded inductor with a low DC resistance and a high saturation current is recommended. The inductor value should be chosen based on the desired output voltage and current.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the output capacitor. The capacitor should be rated for the maximum output voltage and should be placed as close to the IC as possible.
