NCV33072DR2G - onsemi

Description: High Slew Rate: 13 V/µs; Large Output Voltage Swing: -14.7 V to +14 V (with +/-15 V Supplies); Excellent Gain Margin: 12 dB; Wide Bandwidth: 4.5 MHz; Fast Settling Time: 1.1 µs to 0.1%; Low Input Offset Voltage: 3.0 mV Maximum (A Suffix); Output Short Circuit Protection; Large Capacitance Drive Capability: 0 pF to 10,000 pF; Low Total Harmonic Distortion: 0.02%; Excellent Phase Margin: 60° Wide Input Common Mode Voltage Range: Includes Ground (VEE); Wide Single Supply Operation: 3.0 V to 44 V; NCV33072 = Au

Download NCV33072DR2G Model

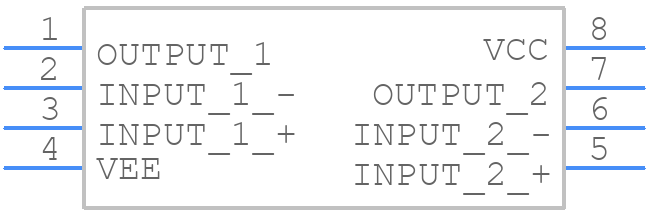

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV33072DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom
3D Models
NCV33072DR2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom

NCV33072DR2G Details

  • Manufacturer Part Number:

    NCV33072DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    4.15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.7 µA

  • Bias Current-Max (IIB) @25C:

    0.5 µA

  • Common-mode Reject Ratio-Nom:

    97 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    7000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Offset:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -22 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TAPE AND REEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    8 V/us

  • Slew Rate-Nom:

    13 V/us

  • Supply Current-Max:

    5.6 mA

  • Supply Voltage Limit-Max:

    22 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    4500

  • Voltage Gain-Min:

    20000

  • Width:

    3.9 mm

NCV33072DR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCV33072DR2G involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a shielded inductor and to keep the device away from high-frequency noise sources.
  • To ensure the NCV33072DR2G operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive temperatures, and the input voltage and output current are within the recommended operating ranges.
  • The NCV33072DR2G has a thermal pad that must be connected to a thermal plane on the PCB to ensure proper heat dissipation. A thermal interface material (TIM) can be used to improve heat transfer between the device and the thermal plane. Additionally, ensure good airflow around the device to prevent overheating.
  • To troubleshoot issues with the NCV33072DR2G, start by checking the input voltage, output voltage, and output current. Verify that the device is properly connected and that the input and output capacitors are of the correct value and type. Use an oscilloscope to check for oscillations or other anomalies in the output waveform.
  • The NCV33072DR2G has built-in ESD protection, but it's still important to follow proper ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment.
