NCV33074DR2G - onsemi

Description: High Slew Rate: 13 V/µs; Large Output Voltage Swing: -14.7 V to +14 V (with +/-15 V Supplies); Excellent Gain Margin: 12 dB; Wide Bandwidth: 4.5 MHz; Fast Settling Time: 1.1 µs to 0.1%; Low Input Offset Voltage: 3.0 mV Maximum (A Suffix); Output Short Circuit Protection; Large Capacitance Drive Capability: 0 pF to 10,000 pF; Low Total Harmonic Distortion: 0.02%; Excellent Phase Margin: 60° Wide Input Common Mode Voltage Range: Includes Ground (VEE); Wide Single Supply Operation: 3.0 V to 44 V

Download NCV33074DR2G Model

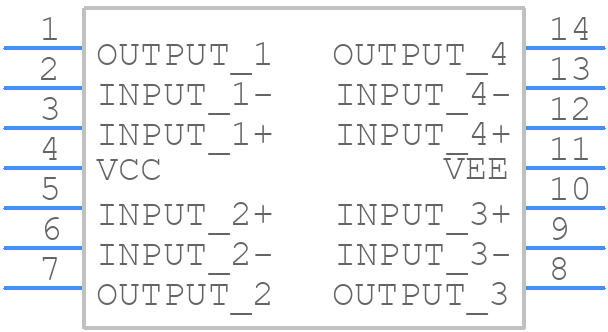

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV33074DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-14 NB CASE751A-03 ISSUE L
click to zoom
3D Models
NCV33074DR2G - onsemi  - 3D model - Small Outline Packages - SOIC-14 NB CASE751A-03 ISSUE L
click to zoom

NCV33074DR2G Details

  • Manufacturer Part Number:

    NCV33074DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-14 NB

  • Pin Count:

    14

  • Manufacturer Package Code:

    751A-03

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    4.15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.7 µA

  • Bias Current-Max (IIB) @25C:

    0.5 µA

  • Common-mode Reject Ratio-Nom:

    97 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    7000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Low-Offset:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -22 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TAPE AND REEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    8 V/us

  • Slew Rate-Nom:

    10 V/us

  • Supply Current-Max:

    11.2 mA

  • Supply Voltage Limit-Max:

    22 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    4500

  • Voltage Gain-Min:

    20000

  • Width:

    3.9 mm

NCV33074DR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for NCV33074DR2G involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, and to place a 1uF ceramic capacitor in parallel with a 10uF electrolytic capacitor. Additionally, the output voltage should be monitored and adjusted as needed to prevent oscillations.
  • The maximum ambient temperature that NCV33074DR2G can operate in is 125°C. However, the device's performance and reliability may degrade at high temperatures, so it is recommended to operate the device at a temperature below 105°C for optimal performance.
  • Yes, NCV33074DR2G is suitable for high-reliability applications. It is manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it is recommended to follow proper design and manufacturing guidelines to ensure the device's reliability in the specific application.
  • To troubleshoot issues with NCV33074DR2G, start by checking the input voltage, output voltage, and output current. Verify that the device is properly connected and that the input and output capacitors are properly sized. Check for signs of overheating, such as excessive temperature or burning smells. If the issue persists, consult the datasheet and application notes for further guidance.
