Description:Internal Thermal Shutdown Protection; Output Switch Current in Excess of 2.0A; Operation from 2.5V to 60V Input; NCV Prefix, for Automotive and Other Applications Requiring Site and Change Control; Low Standby Current; Precision 2% Reference; Controlled Duty Cycle Oscillator; Driver with Bootstrap Capability for Increased Efficiency; Cycle-by-Cycle Current Limiting; Low Voltage Indicator Output for Direct Microprocessor Interface; Heat Tab Power Package; Moisture Sensitivity Level (MSL) Equals 1; Pb-Free Pa
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Avoid placing thermal vias under the device, and keep the thermal pad connected to the ground plane.
To ensure reliable operation in high-temperature environments, ensure that the device is operated within its recommended operating temperature range (-40°C to 150°C). Use a suitable thermal interface material (TIM) between the device and the heat sink, and ensure good airflow around the device. Monitor the device's junction temperature (TJ) and adjust the thermal design accordingly.
The recommended soldering conditions for the NCV33163DWR2G are: peak temperature of 260°C, soldering time of 10-30 seconds, and a soldering iron temperature of 350°C. Use a solder with a melting point of 217°C to 220°C. Avoid using excessive soldering temperatures or times, as this can damage the device.
To handle ESD protection for the NCV33163DWR2G, ensure that the device is handled and stored in an ESD-protected environment. Use ESD-protective packaging and handling materials, and ground yourself before handling the device. Avoid touching the device's pins or leads, and use an ESD wrist strap or mat when handling the device.
The recommended storage conditions for the NCV33163DWR2G are: temperature range of -40°C to 30°C, relative humidity of 60% or less, and protection from direct sunlight and moisture. Store the device in its original packaging or in a dry, ESD-protected environment.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV33163DWR2G Overview

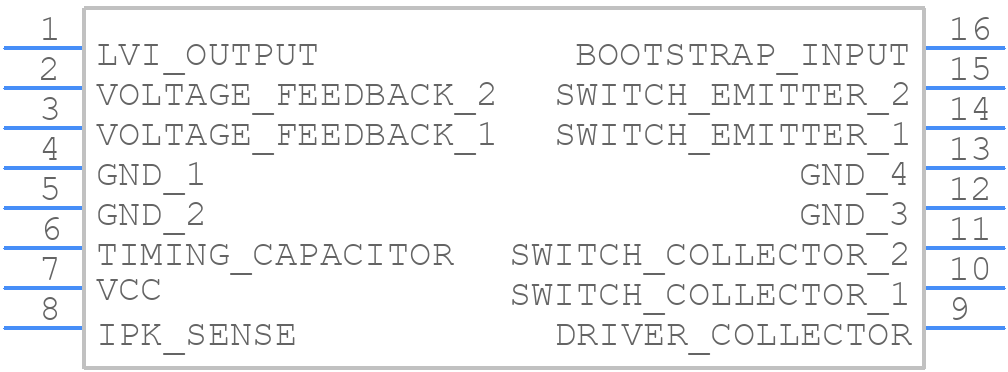

Use the download button to access the NCV33163DWR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV33,
or try a keyword search, such as Switching Regulator or Controllers
