NCV33201VDR2G - onsemi

Description: IC OPAMP GP 1 CIRCUIT 8SOIC

Download NCV33201VDR2G Model

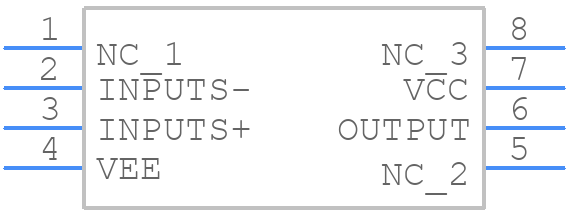

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV33201VDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8
click to zoom
3D Models
NCV33201VDR2G - onsemi  - 3D model - Small Outline Packages - SOIC-8
click to zoom

NCV33201VDR2G Details

  • Manufacturer Part Number:

    NCV33201VDR2G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    SOIC-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2018-07-18

  • Manufacturer:

    onsemi

  • YTEOL:

    0.4

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.5 µA

  • Bias Current-Max (IIB) @25C:

    0.2 µA

  • Common-mode Reject Ratio-Min:

    60 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.2 µA

  • Input Offset Voltage-Max:

    13000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    0.5 V/us

  • Slew Rate-Nom:

    1 V/us

  • Supply Current-Max:

    1.125 mA

  • Supply Voltage Limit-Max:

    13 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    2200

  • Voltage Gain-Min:

    25000

  • Wideband:

    NO

  • Width:

    3.9 mm
