The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad connected to a large copper area on the PCB, and ensuring good airflow around the device. A 4-layer PCB with a solid ground plane and a thermal relief pattern around the thermal pad is also recommended.
To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet. Additionally, ensure good airflow around the device, and consider using a heat sink or thermal interface material to improve heat dissipation.
The recommended input and output capacitors for the NCV33269DR2G are ceramic capacitors with a voltage rating of at least 25V and a capacitance value of 10uF to 22uF. The capacitors should be placed as close to the device as possible to minimize parasitic inductance.
To troubleshoot issues with the device's output voltage regulation, check the input voltage, output voltage, and output current to ensure they are within the specified operating ranges. Also, verify that the feedback resistors are correctly connected and that the output capacitor is properly sized and placed.
The recommended method for soldering the NCV33269DR2G is to use a reflow soldering process with a peak temperature of 260°C and a dwell time of 30 seconds. Hand soldering is not recommended due to the device's small size and high pin density.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV33269DR2G Overview

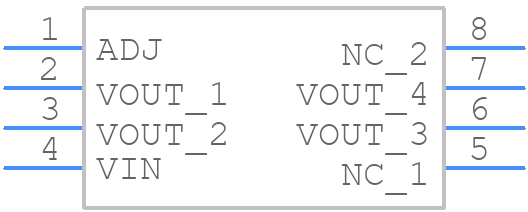

Use the download button to access the NCV33269DR2G schematic symbol, PCB footprint, and 3D model.
