NCV33272ADR2G - onsemi

Description: Power Bandwidth: 160 kHz; Unity Gain Stable: w/Capacitance Loads to 500 pF; ESD Diodes Provide Added Protection to the Inputs; Input Offset Voltage Trimmed to 100 µV (Typ); Low Noise: 18 nV/ (sq. root Hz) @ 1.0 kHz; Low Input Bias Current: 300 nA; Single or Split Supply Operation: +3.0 V to +36 V or +/-1.5 V to +/-18 V; Excellent Frequency Stability; Large Output Voltage Swing: +14.1 V/ -14.6 V; Low Total Harmonic Distortion: 0.003%; Low Input Offset Current: 3.0 nA; High Slew Rate: 10 V/µs; High Input Resi

Download NCV33272ADR2G Model

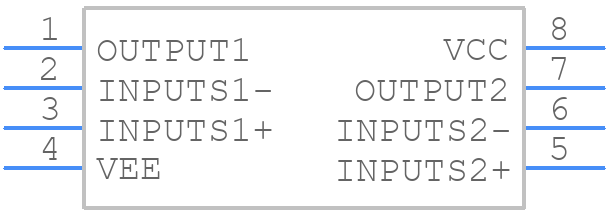

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV33272ADR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - NCV33272ADR2G
click to zoom
3D Models
NCV33272ADR2G - onsemi  - 3D model - Small Outline Packages - NCV33272ADR2G
click to zoom

NCV33272ADR2G Details

  • Manufacturer Part Number:

    NCV33272ADR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    4.15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.8 µA

  • Bias Current-Max (IIB) @25C:

    0.65 µA

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    2500 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Offset:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TAPE AND REEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    8 V/us

  • Slew Rate-Nom:

    10 V/us

  • Supply Current-Max:

    6 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    5500

  • Voltage Gain-Min:

    19950

  • Width:

    3.9 mm
