Description:Oscillator Frequency Guaranteed at 250 kHz; Current Mode Operation to 500 kHz; Automatic Feed Forward Compensation; Latching PWM for Cycle−By−Cycle Current Limiting; Internally Trimmed Reference with Under-voltage Lockout; High Current Totem Pole Output; Under-voltage Lockout with Hysteresis; Low Startup and Operating Current; These are Pb−Free Devices; Trimmed Oscillator for Precise Frequency Control
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Avoid placing thermal vias under the device, and keep the thermal pad clear of any obstacles.
To ensure reliable operation in high-temperature environments, ensure that the device is operated within its recommended operating temperature range (-40°C to 150°C). Use a heat sink or thermal pad to dissipate heat, and avoid overheating the device. Also, ensure that the device is properly soldered and that the PCB is designed to minimize thermal resistance.
When handling the device, take precautions to prevent damage from electrostatic discharge (ESD). Use an ESD wrist strap or mat, and handle the device by the body or pins, not the leads. Avoid touching the device's leads or pins, and store the device in an anti-static bag or container.
To troubleshoot issues with the device's output voltage regulation, check the input voltage, output voltage, and output current. Verify that the device is properly configured and that the output capacitor is of sufficient value. Check for any signs of overheating, and ensure that the device is operated within its recommended operating conditions.
When using the device in a high-reliability application, consider the device's reliability and failure rate. Ensure that the device is operated within its recommended operating conditions, and that it is properly derated for the application. Use a robust PCB design, and ensure that the device is properly soldered and inspected.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV3843BVD1R2G Overview

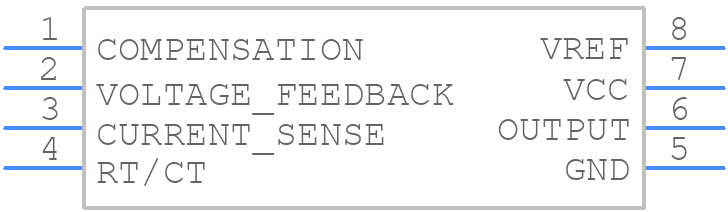

Use the download button to access the NCV3843BVD1R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV38,
or try a keyword search, such as Switching Regulator or Controllers
