Description:Oscillator Frequency Guaranteed at 250 kHz; Current Mode Operation to 500 kHz; Automatic Feed Forward Compensation; Latching PWM for Cycle−By−Cycle Current Limiting; Internally Trimmed Reference with Under-voltage Lockout; High Current Totem Pole Output; Under-voltage Lockout with Hysteresis; Low Startup and Operating Current; These are Pb−Free Devices; Trimmed Oscillator for Precise Frequency Control
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Avoid placing thermal vias under the device, and keep the thermal pad clear of solder mask.
To ensure reliable operation in high-temperature environments, ensure that the device is operated within its recommended operating temperature range (-40°C to 150°C). Use a suitable heat sink or thermal interface material to maintain a safe junction temperature. Also, consider using a thermistor or thermal sensor to monitor the device temperature.
The recommended soldering conditions for NCV3843BVDR2G are: peak temperature 260°C, time above 217°C 30 seconds, and time above 183°C 90 seconds. Use a soldering iron with a temperature range of 350°C to 400°C, and ensure that the soldering process is completed within 3 seconds.
To handle ESD protection for NCV3843BVDR2G, ensure that all personnel handling the device wear anti-static wrist straps or use anti-static mats. Use ESD-protected workstations and tools, and store the device in anti-static packaging. Avoid touching the device pins or leads, and use a grounded wrist strap when handling the device.
The recommended storage conditions for NCV3843BVDR2G are: temperature range -40°C to 35°C, relative humidity 60% or less, and avoid exposure to direct sunlight or moisture. Store the device in its original packaging or in a dry, clean environment.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV3843BVDR2G Overview

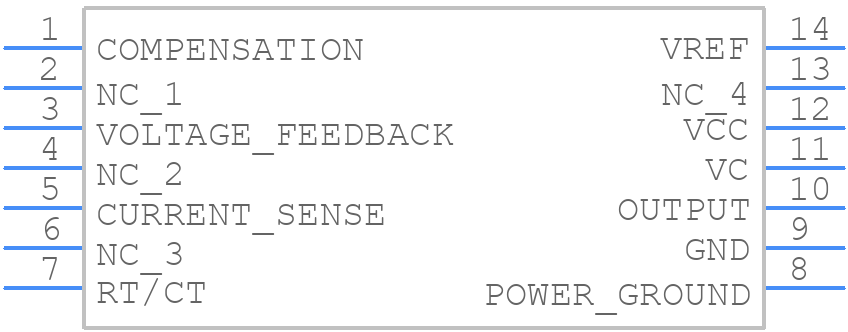

Use the download button to access the NCV3843BVDR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV38,
or try a keyword search, such as Switching Regulator or Controllers
