A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. The PCB should also have sufficient copper area to dissipate heat.
To ensure reliable operation in high-temperature environments, ensure that the device is operated within its specified temperature range, and that the PCB is designed to minimize thermal resistance. Additionally, consider using thermal interface materials to improve heat transfer between the device and the heat sink.
The recommended input and output capacitors for the NCV4266-2CST50T3G are 10uF to 22uF X7R or X5R ceramic capacitors with a voltage rating of 10V to 25V. These capacitors should be placed as close to the device as possible to minimize parasitic inductance.
To troubleshoot issues with the device's output voltage regulation, check the input voltage, output voltage, and output current. Verify that the input voltage is within the specified range, and that the output voltage is within the specified tolerance. Also, check for any signs of overheating or excessive current draw.
Operating the device beyond its specified maximum ratings can lead to reduced reliability, decreased performance, and potentially even device failure. It is essential to operate the device within its specified ratings to ensure reliable operation and to prevent damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV4266-2CST50T3G Overview

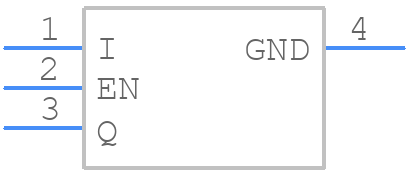

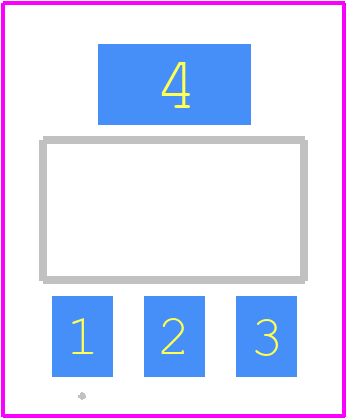

Use the download button to access the NCV4266-2CST50T3G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV42,
or try a keyword search, such as Linear Regulator ICs
