Description:5.0V and 3.3V +/- 2% Output with 150mA Output Current Capability; Active Reset Output Low Down to VQ=1.0V; Adjustable Reset Threshold; Fault Protection: -40V Reverse Voltage Protection Short Circuit Protection Thermal overload protection; Early Warning through SI/SO Leads, adjustable threshold via external resistor; Very Low Dropout Voltage; AEC Q100 Qualified; Integrated Pullup Resistor at Logic Outputs (To Use External Resistors, Select the NCV4279A)
A good PCB layout for optimal thermal performance would be to have a solid copper plane on the bottom layer of the PCB, connected to the thermal pad of the NCV4269AD250R2G. This helps to dissipate heat efficiently. Additionally, it's recommended to have a minimum of 2oz copper thickness and to avoid any thermal vias or holes under the device.
To ensure reliable operation over the full temperature range, it's essential to follow proper PCB design and layout guidelines, ensure good thermal management, and use a suitable thermal interface material (TIM) between the device and the heat sink. Additionally, it's recommended to derate the device's power dissipation according to the ambient temperature.
The critical parameters to monitor during operation include the input voltage, output voltage, output current, and junction temperature. It's also essential to monitor the device's power dissipation and thermal performance to prevent overheating.
The NCV4269AD250R2G has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. However, it's still recommended to add external protection circuits to handle overvoltage and undervoltage conditions, such as using a voltage supervisor or a reset IC to monitor the input voltage and reset the system if it falls outside the specified range.
To minimize EMI and EMC issues, it's recommended to follow proper PCB design and layout guidelines, use a shielded enclosure, and add EMI filters or common-mode chokes to the input and output lines. Additionally, it's essential to ensure that the device is properly decoupled and that the input and output capacitors are selected to minimize noise and ringing.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV4269AD250R2G Overview

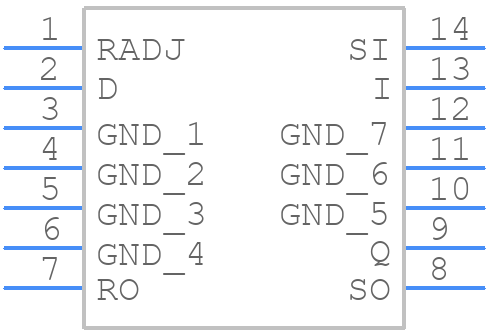

Use the download button to access the NCV4269AD250R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV42,
or try a keyword search, such as Linear Regulator ICs
