The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal traces as short and wide as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and consider derating the device's power dissipation according to the ambient temperature.
Exceeding the maximum junction temperature (Tj) rating can lead to reduced device lifespan, increased thermal resistance, and potentially even device failure. It's crucial to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
Yes, the NCV4274AST25T3G is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive-grade devices. However, it's essential to follow the recommended design guidelines and testing procedures to ensure compliance with the specific application requirements.
To troubleshoot issues related to the device's over-temperature protection (OTP) feature, check the device's thermal design, ensure proper thermal coupling, and verify that the device is not operating in a high-temperature environment. Also, review the OTP threshold and hysteresis settings to ensure they are correctly configured.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV4274AST25T3G Overview

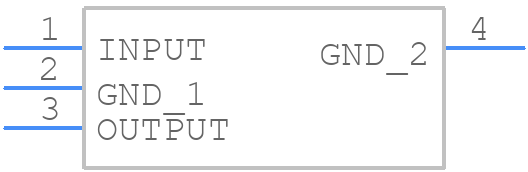

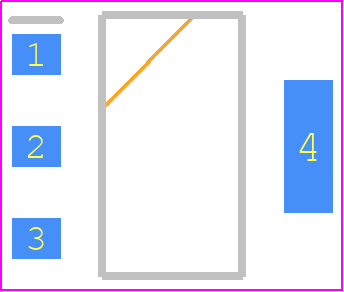

Use the download button to access the NCV4274AST25T3G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV42,
or try a keyword search, such as Linear Regulator ICs
